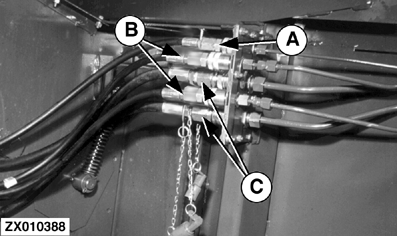

Connect the hydraulic hoses fitted with quick couplers.
NOTE: All hoses are marked to prevent mix-up.
A- Reel Lift B- Reel Fore-And-Aft Adjustment C- Hydraulic Reel Drive
ZX,OMSLC007781 -19-11JAN97-1/1
