OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OMSLC007783_19

Road Safety Switch

IMPORTANT: For road travel, road safety switch must be in road position (II). Before driving on public roads, also move header and unloading auger to transport position.

This ensures that all hydraulic functions - with the exception of the steering system - are not working. With road safety switch in road position, it is also not possible to engage separator and header drives.

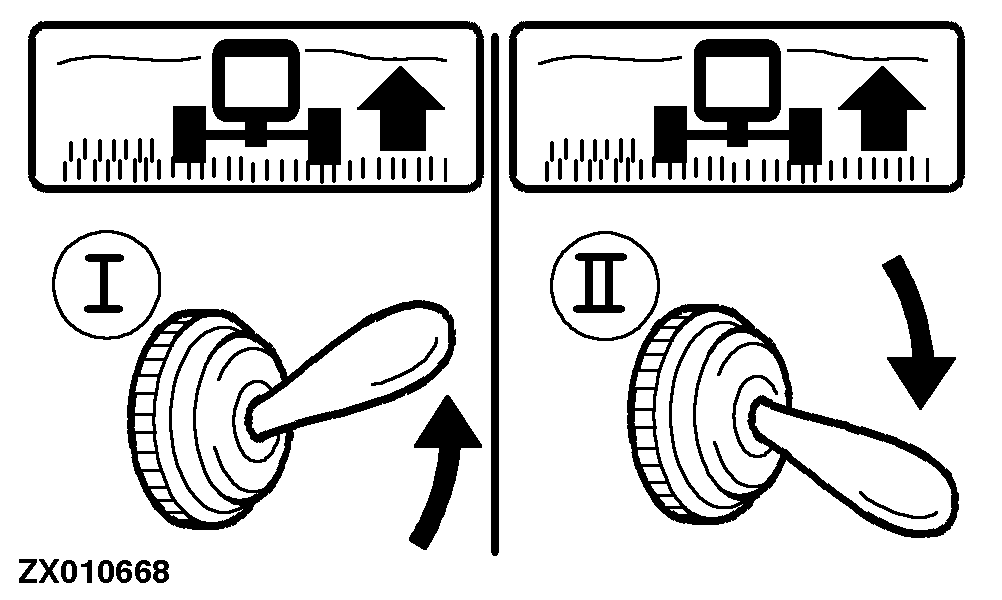

I-Field Position
II-Road Position

ZX,OMSLC007783 -19-22JAN97-1/1
