OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OMSLC010148_19

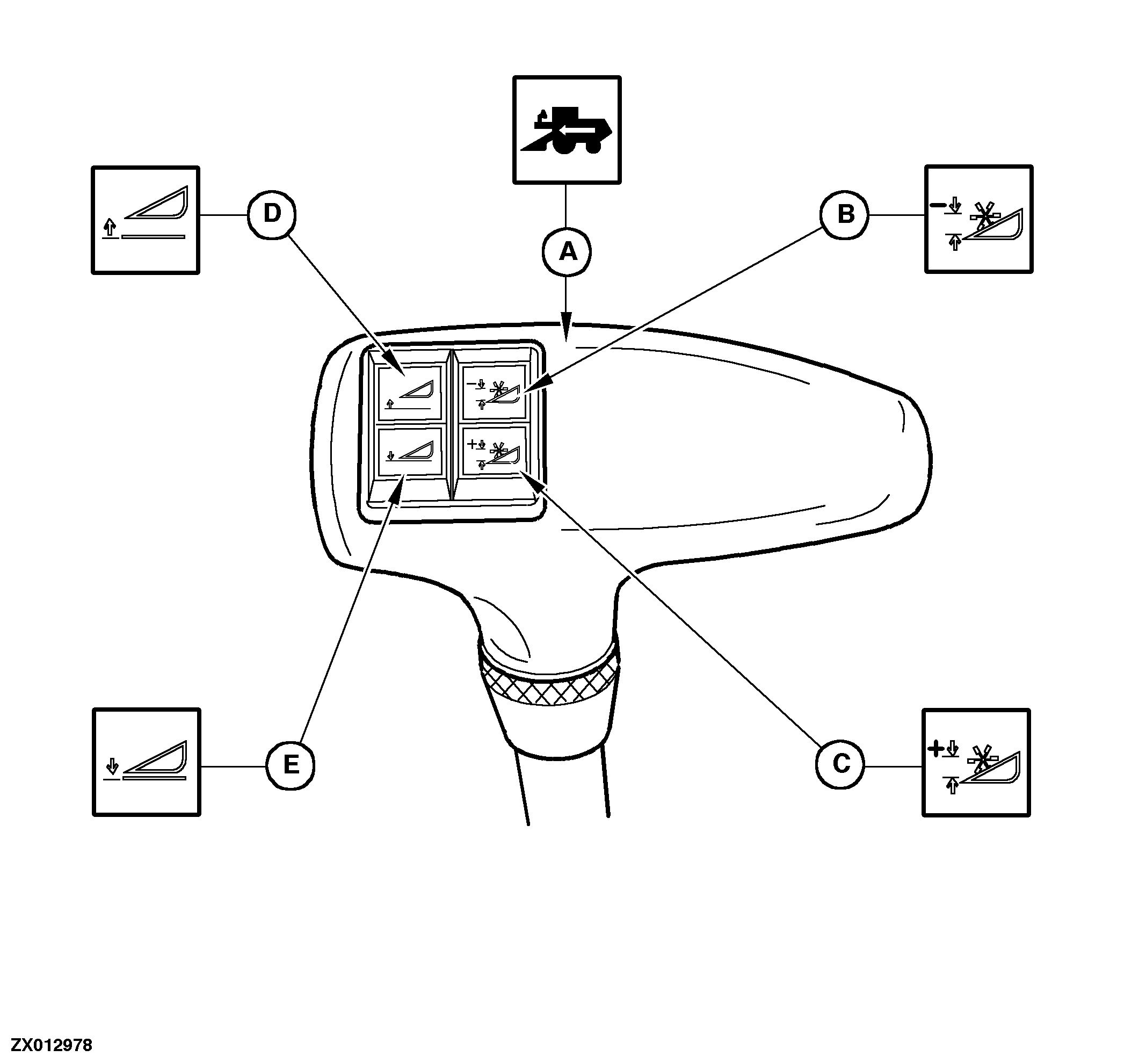

A-Forward/Reverse Lever
B-Decrease Reel Height

C-Increase Reel Height

D-Raise Header

E-Lower Header

Multi-function lever handle can be placed into most comfortable position by loosening the lock nut under the handle.

ZX,OMSLC010148 -19-20OCT97-1/1
