Electronic Boards

Fuse board and relay box (A) are located on the right-hand side of the operator's cab. Use a screwdriver on the four attachment points to remove it.

ZX010501

ZX,OMSLC010153 -19-01DEC98-1/3

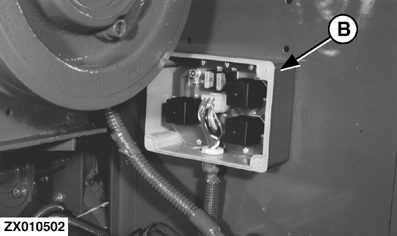

The straw chopper and fan motor control box (B) is located near the electro-magnetic clutch and the battery.

ZX010502

ZX,OMSLC010153 -19-01DEC98-2/3

The control signals for lifting and lowering of cutting platform and reel emitted by the switches in multifunction lever are boosted by means of amplifier (C) located under the operator's cab.

The switches in the multifunction lever control the following solenoid valves:

  • Y2 for lifting the cutting platform
  • Y3 for lowering the cutting platform
  • Y4 and Y1 for lifting the reel
  • Y5 and Y1 for lowering the reel
ZX010503

ZX,OMSLC010153 -19-01DEC98-3/3
