Remove header , if overall width exceeds the legal limits (for details of removal, see "Cutting Platform (312, 314, 316 and 319) Section). Move the feeder house to transport position.

Move straw chopper distributor plate to transport position.

Empty the grain tank .

Swing in the unloading auger .

Raise and secure the access ladder .

Switch on the lights , if necessary.

For general information on driving, see this Section.

ZX,OMXZCO001585 -19-01AUG92-1/2

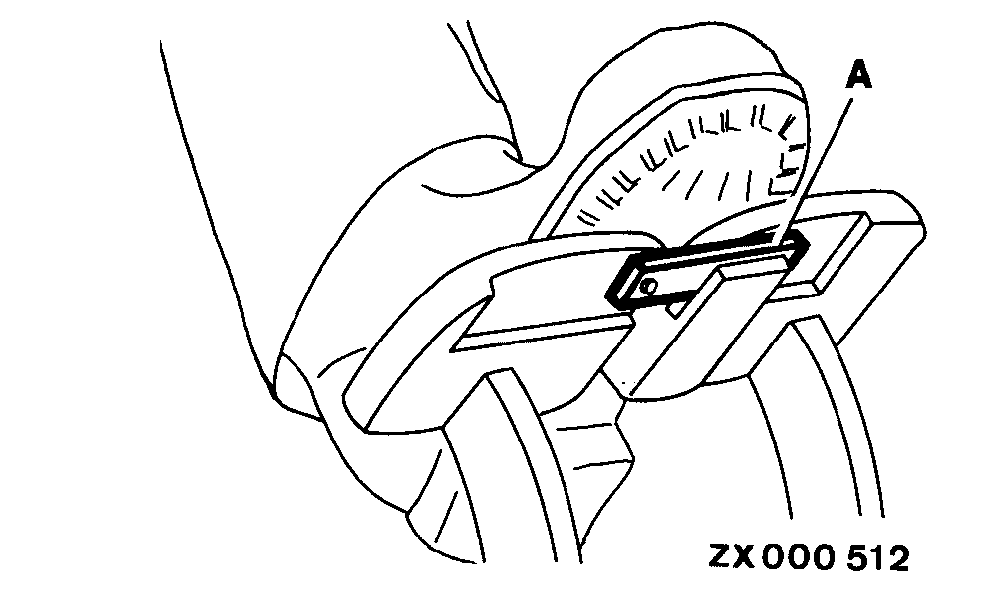

CAUTION: For safety reasons, always couple brake pedals by means of pedal coupler (A) when driving on public roads. This ensures the brakes are actuated together.

ZX,OMXZCO001585 -19-01AUG92-2/2
