Fuel Tank Water Trap

IMPORTANT: If the fuel is severely contaminated, drain water and sediment deposits into a suitable container. Do this several times daily if necessary.

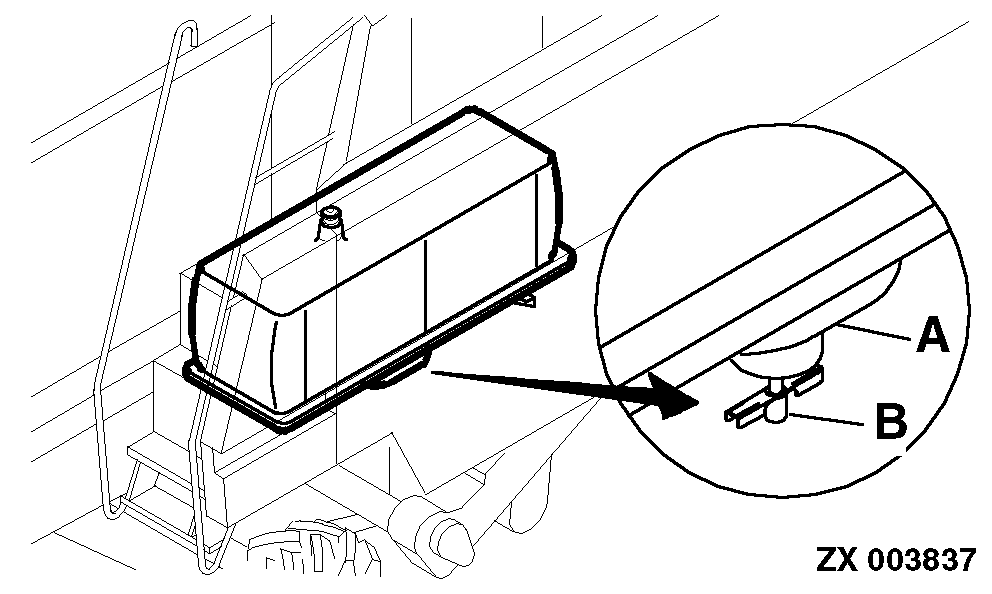

Water and sediment collect in water trap (A).

Every day before starting work, open drain valve (B) and drain water and sediment deposits until the fuel flowing out is clean. Close drain valve.
