Transmission

Change oil after the first 100 hours of operation. Thereafter change oil every 1000 hours of operation or before every harvesting season (whichever occurs first).

Check oil level every 250 hours of operation.

IMPORTANT: Always use specified oil.

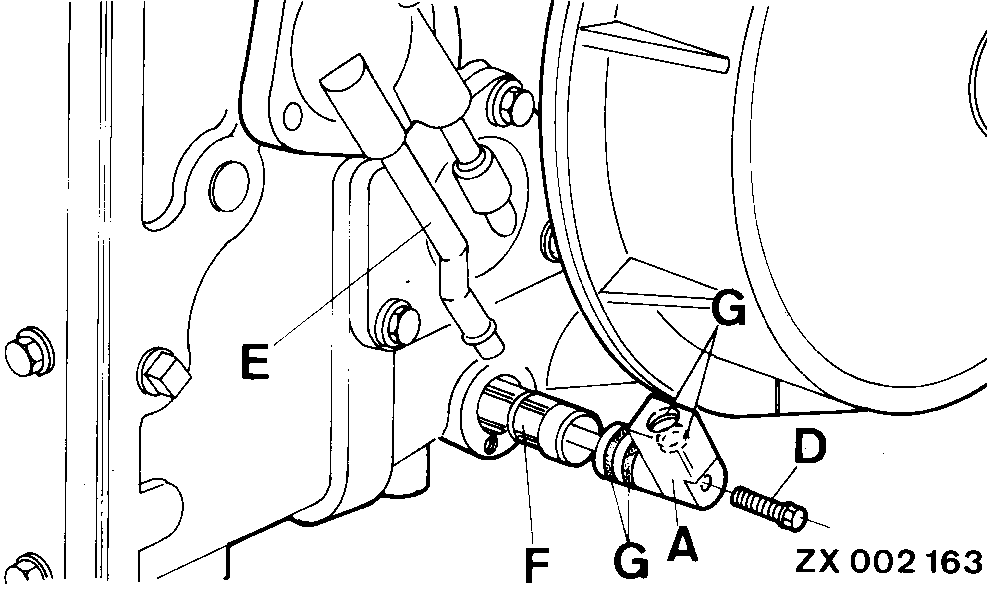

Remove cap screw (D).

Remove drain plug (A) from transmission housing and take out line (E).

IMPORTANT: When reinstalling, make sure filter (F) is seated correctly in transmission housing.

Check filter (F) and O-rings (G), and replace if necessary.

A-Oil drain plug
B-Check plug
C-Filler and bleed plug
D-Cap screw
E-Line
F-Screen
G-O-rings

ZX,OMXZCO002227 -19-05OCT92-1/1
