Float Calibration (For Header With Sensors)

The pressure sensor is calibrated for the header installed on the combine in the float system calibration procedure. The float calibration procedure must be performed when a header is initially hooked up if the ground pressure (float) mode of operation will be used.

Prepare Header For Calibration:

Turn the key switch to the run position.

Hook up header to the combine and ensure header harness is connected to combine harness. Move the machine onto a level surface.

AG,OUZXMAG,334 -29-17FEB00-1/9

Press the diagnostic switch. DIA will appear on the triple display tachometer.

ZX018729

AG,OUZXMAG,334 -29-17FEB00-2/9

Press the calibration switch tuntil CAL and ACF appear on the tachometer.

ZX018730

AG,OUZXMAG,334 -29-17FEB00-3/9

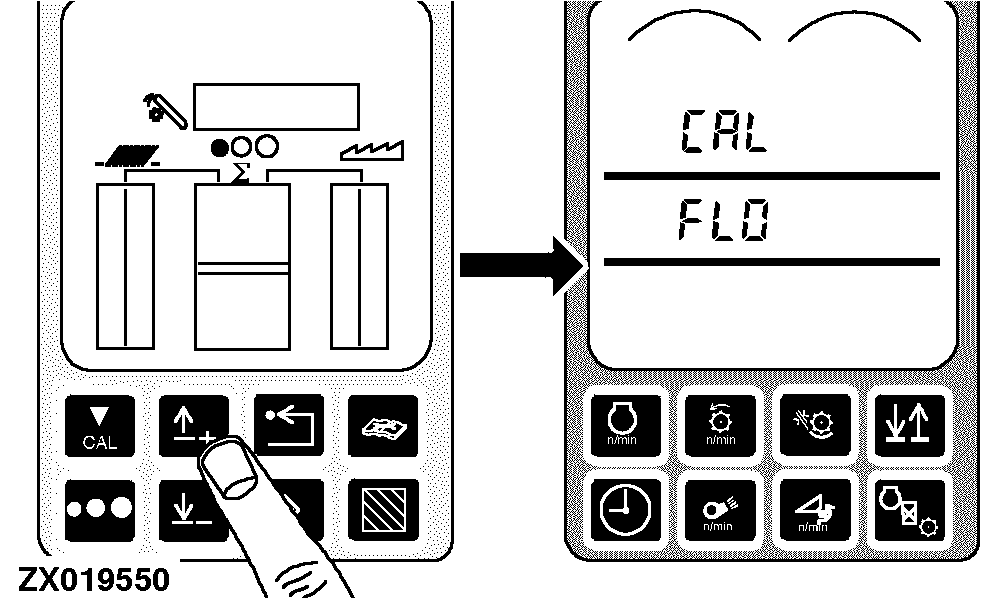

Press the up or down arrow switch to access the FLO calibration mode. CAL and FLO will appear on the tachometer.

ZX019550

AG,OUZXMAG,334 -29-17FEB00-4/9

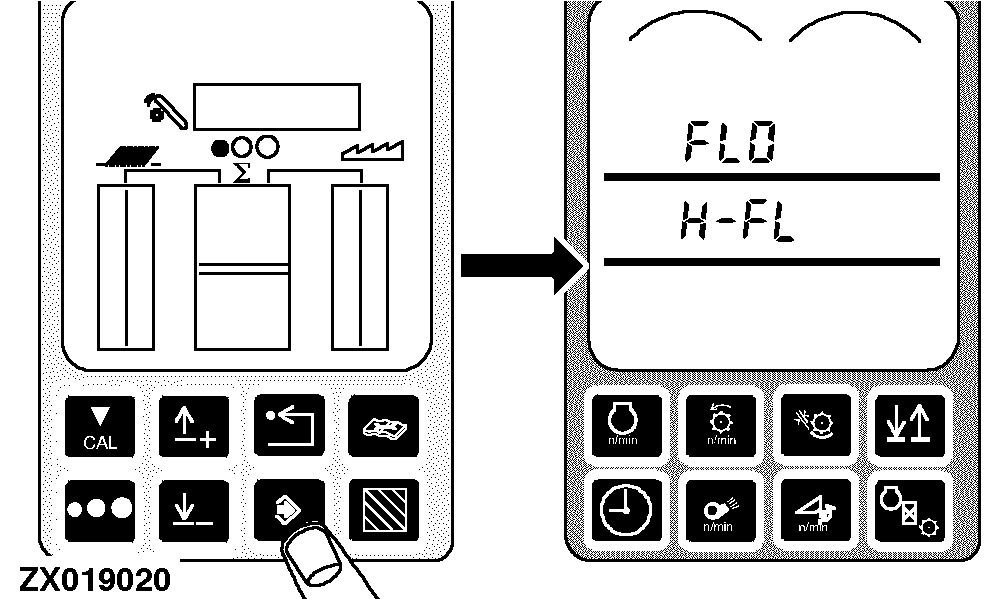

Press the enter switch to access the float calibration mode. FLO and H-FL should appear on the tachometer.

ZX019020

AG,OUZXMAG,334 -29-17FEB00-5/9

While in this mode, the feederhouse may be moved in open loop control.

With the header lift switch on the multifunction lever, lower the header until the cutterbar is about 100 mm (3.94 in.) above ground level (the header must not touch the ground).

ZX018996

AG,OUZXMAG,334 -29-17FEB00-6/9

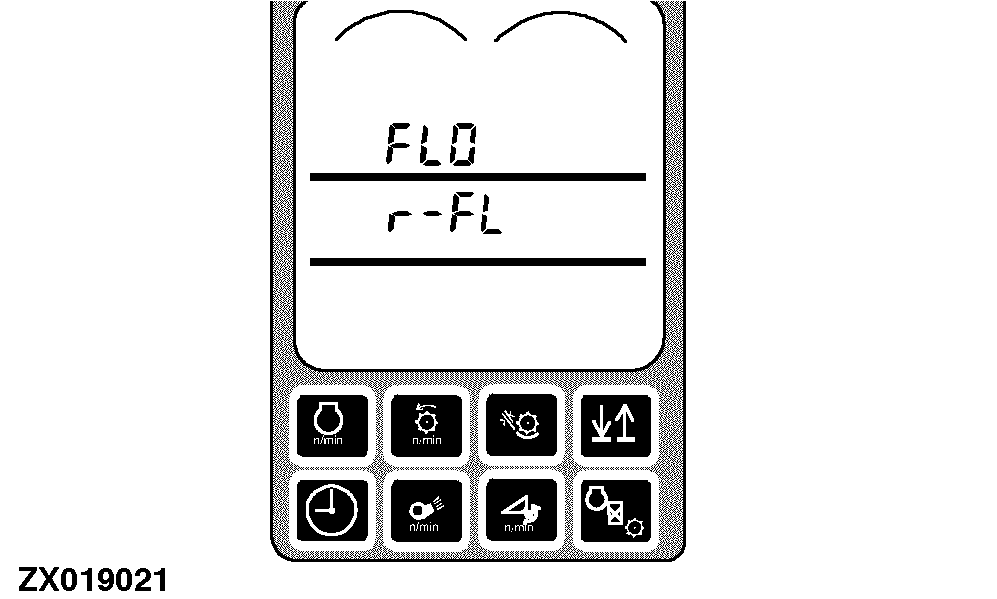

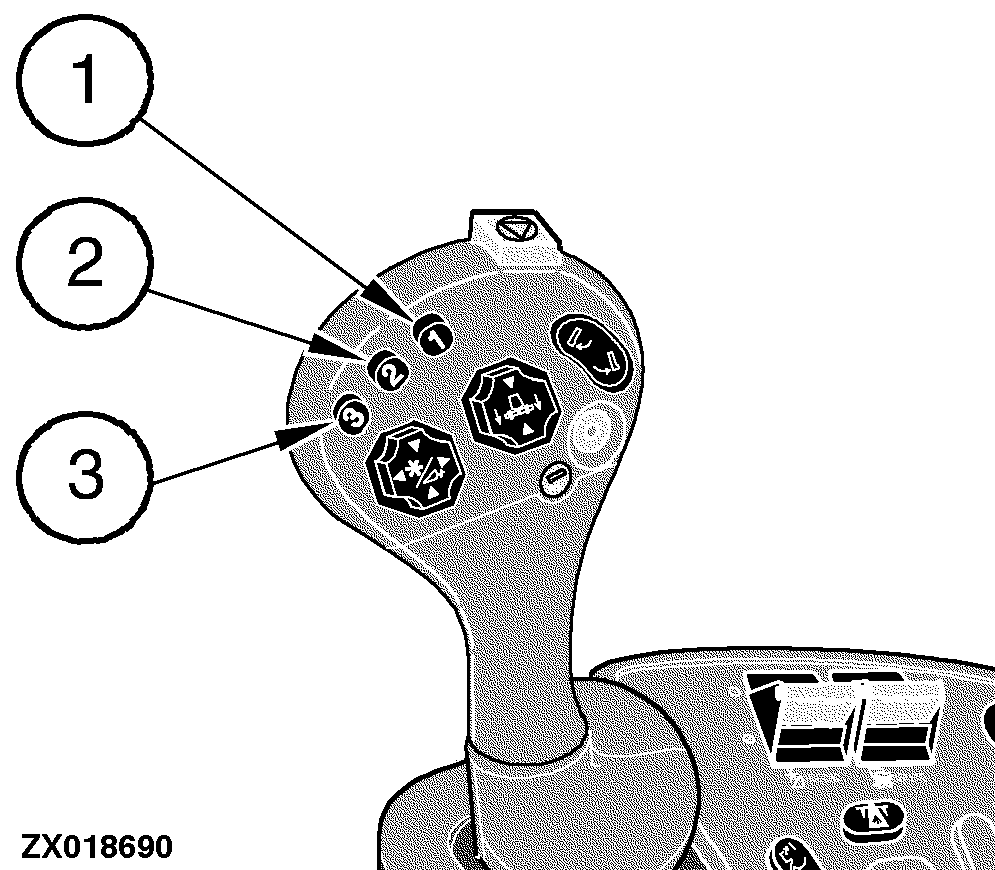

Press the activation switch 3 on the multifunction lever and hold at least 2 seconds. FLO and r-FL should appear on the tachometer.

ZX018690
ZX019021

AG,OUZXMAG,334 -29-17FEB00-7/9

After 2 seconds the tachometer will display 103 and EOC.

ZX019022

AG,OUZXMAG,334 -29-17FEB00-8/9

Press the enter switch to store all end of calibration (EOC) values which did not have errors.

If no errors occurred during calibration, the following will be displayed:

  • EOC
  • Er00
  • xxx header type
  • xxx lift cylinder pressure (kPa or psi)
  • END

If any errors occurred during calibration, previous calibration values are kept and the following will be displayed:

  • EOC
  • Err
  • END

Press the back arrow switch twice to return to normal operation.

ZX018990
