Reel Speed Control Knob (Optional)

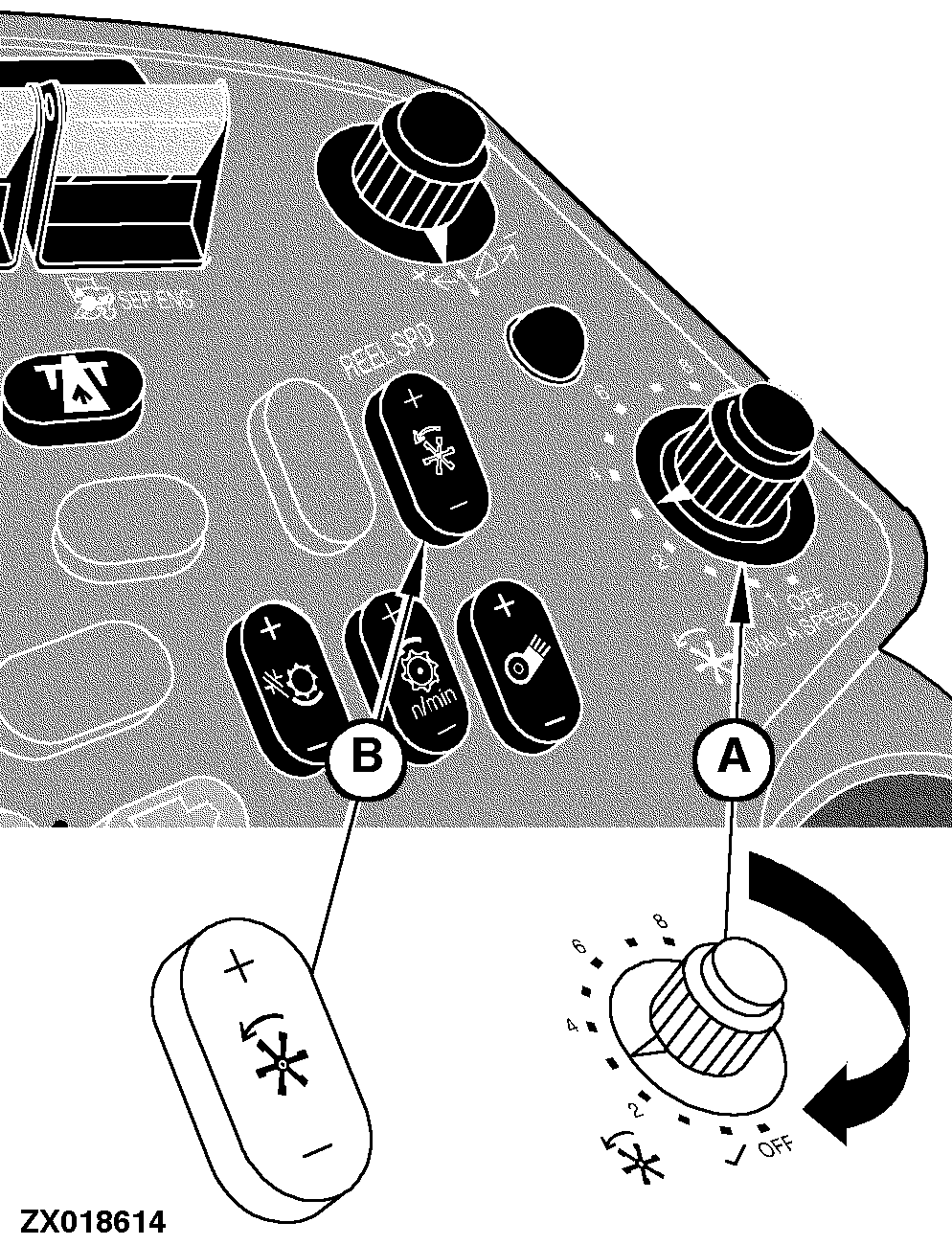

The knob (A) controls the ratio of the reel speed or the belt pickup to ground speed.

To operate:

1. Start the engine and drive forward with the separator and header engaged.

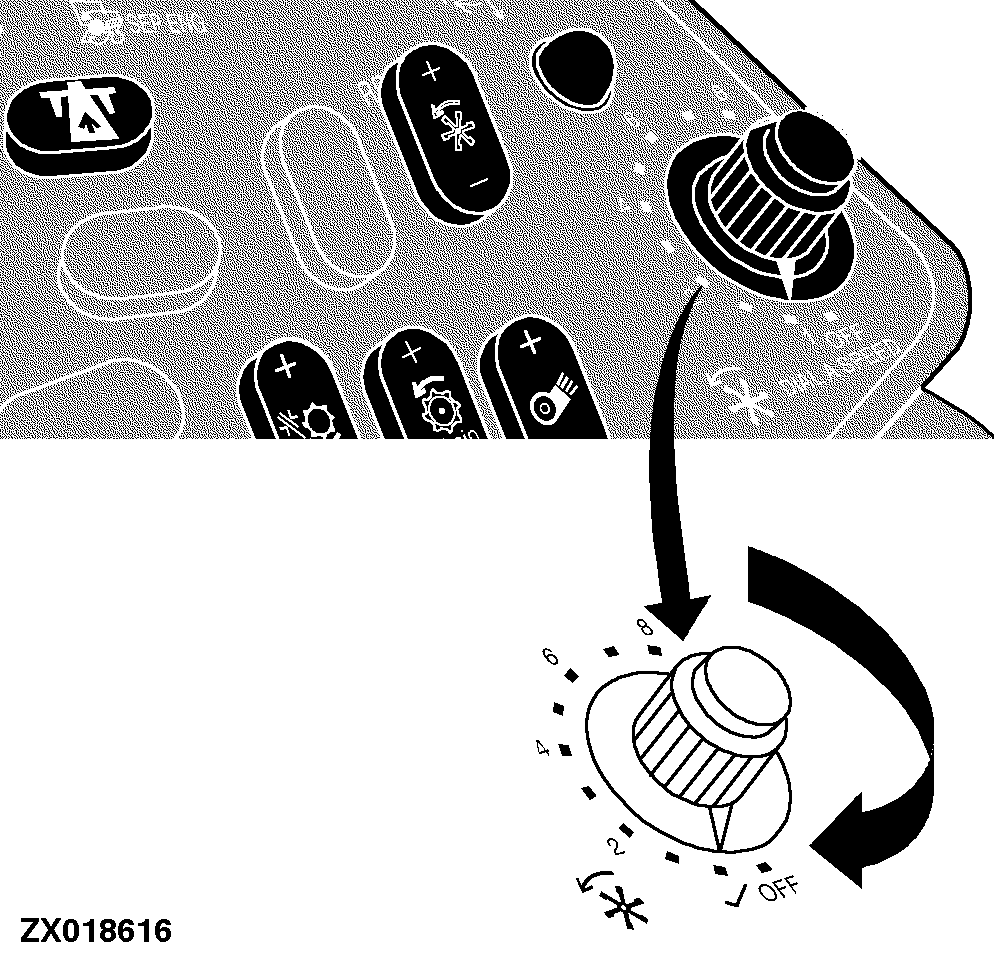

2. Turn the reel speed control knob to position 3.

3. Watch the speed of the reel or belt pickup and adjust the knob until you get the desired ratio to ground speed.

4. The reel or belt pickup will now speed up or slow down in relation to the ground speed.

Reel speed control will not operate if ground speed is less than 1.2 km/h (0.75 mph).

The minimum reel speed and belt pickup speed can be increased with the manual reel speed switch (B) when operating at less than 1.2 km/h (0.75 mph).

A-Reel Speed Control Knob
B-Manual Reel Speed Switch

AG,OUZXMAY,88 -19-12OCT99-1/2

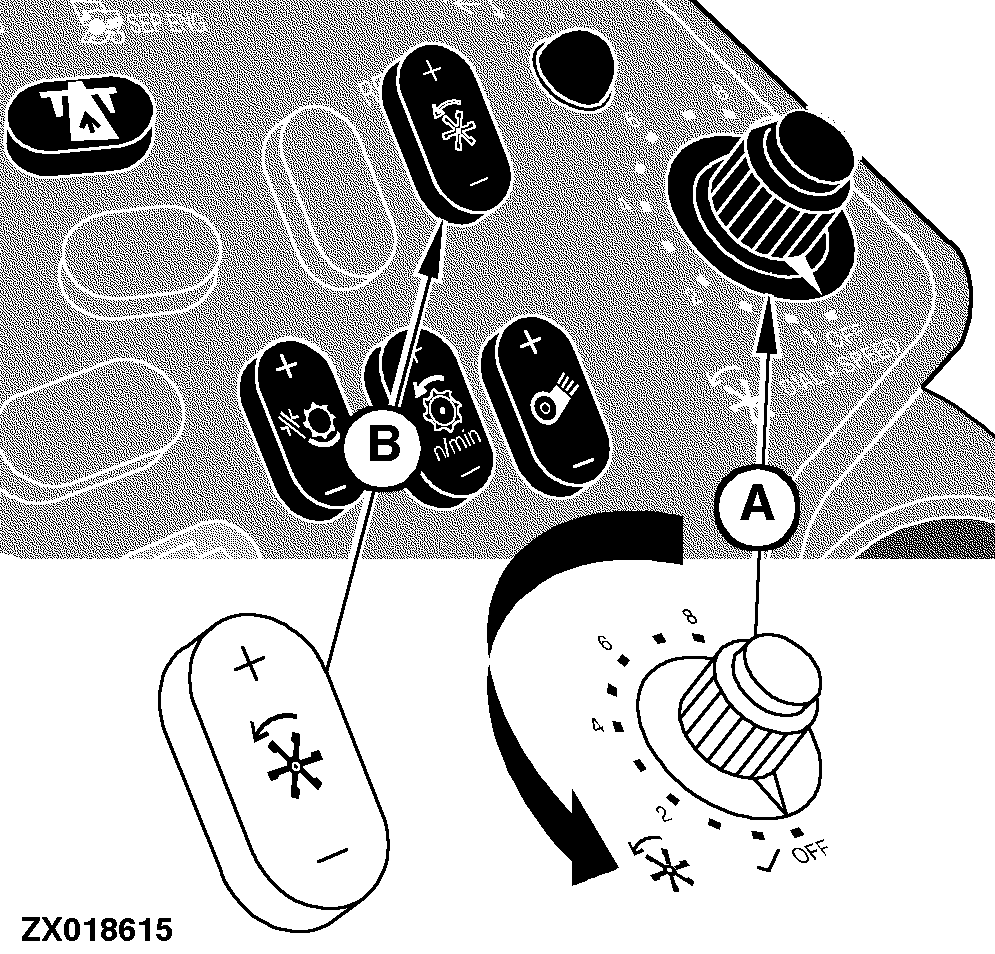

To change the minimum speed:

1. Turn the reel speed control knob (A) to the "OFF" position.

2. Press the manual switch (B) to get the minimum reel or belt pickup speed desired.

3. Turn knob to the check position for two or three seconds.

4. Return the knob to the previous setting and continue operating. This minimum speed is kept until the engine is shut off.
