Small Grain, Universal and Spike Tooth Concave

Three concave types are available to match all crops:

Small grain concave (A) with close spaced concave wire is recommended for small grain. It reduces chaff load on the sieves and improves cleaning efficiency.

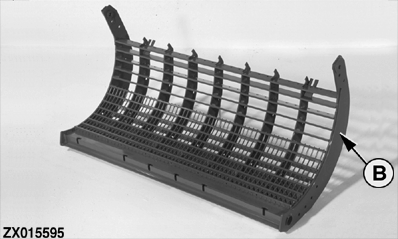

Universal concave (B) with large spaced concave wire is a multi-purpose concave especially recommended when harvesting small grain and corn.

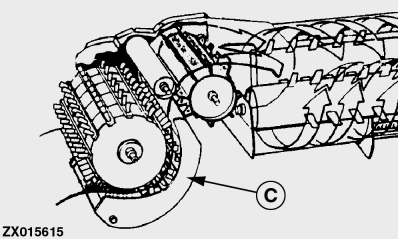

Spike tooth concave (C) (in conjunction with spike-tooth cylinder) is specially recommended when harvesting rice.

ZX,OMCTS012358 -19-01SEP98-1/1
