Adjusting Left-Hand Armrest and Seat Back

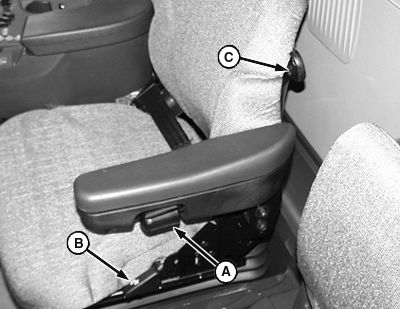

To adjust the left-hand armrest up or down, use knob (A). Rotate the knob clockwise to lower and counter clockwise to raise.

Pull up on lever (B) to adjust seat back angle. Release lever when seat back is in desired position.

Move lever (C) up or down to adjust lower back support.

A-Armrest Adjustment Knob
B-Seat Back Angle Adjustment Lever
C-Lower Back Support Adjustment Lever

AG,OUO1035,621 -19-10MAY99-1/1
