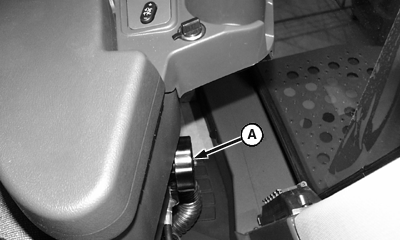

Adjusting Right-Hand Armrest and Control ConsoleA single control moves the right-hand armrest and control console vertically or forward and rearward. To adjust the armrest, push in on knob (A) and rotate in either direction for desired working position.
|
|
