Shifting Feeder House/Header Reverser

IMPORTANT: Reel must be raised before engaging reverser. Backing out a crop "slug" into a turning reel will bend it.

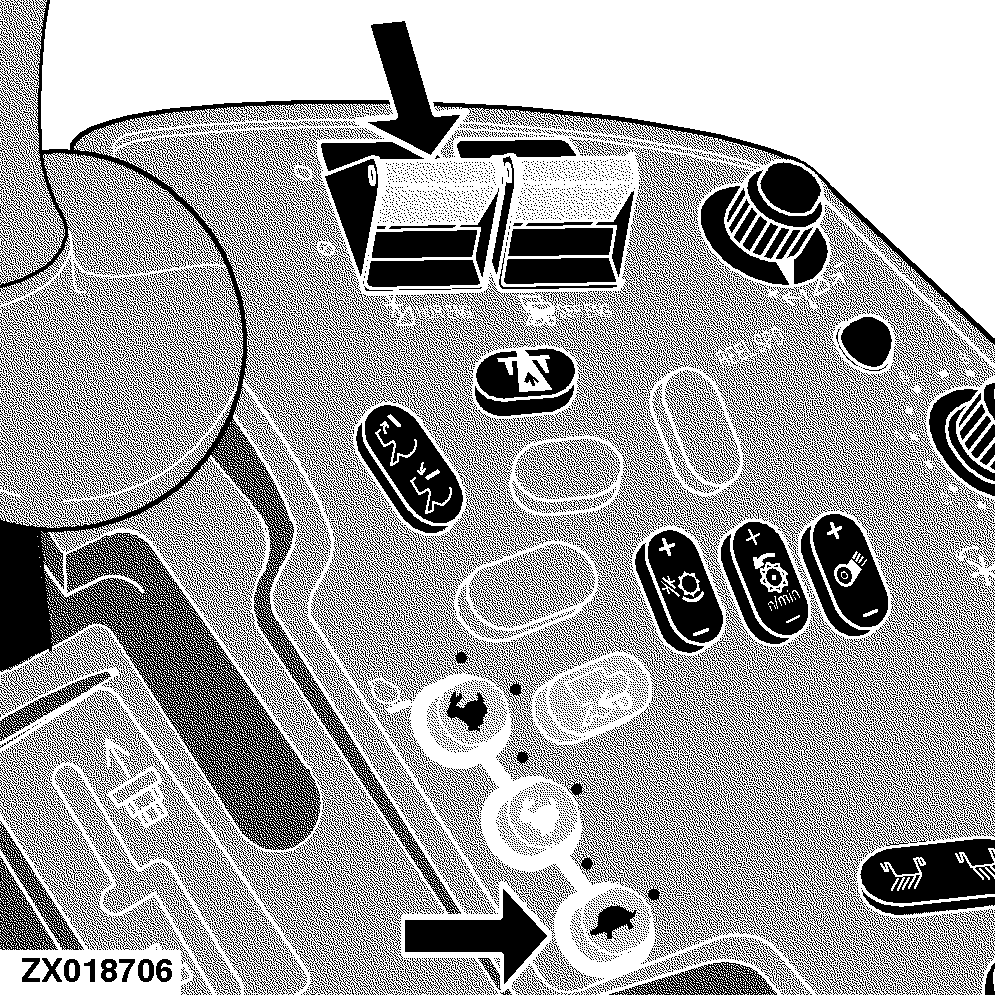

1. Stop header by switching off yellow header drive switch.

2. Throttle engine to slow idle.

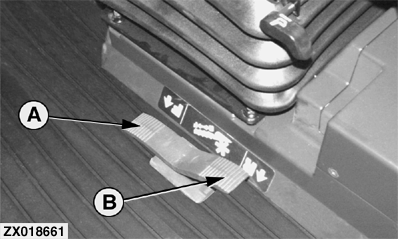

3. Step and hold down on left side of pedal (B).

NOTE: The pedal must be held down or it will not shift.

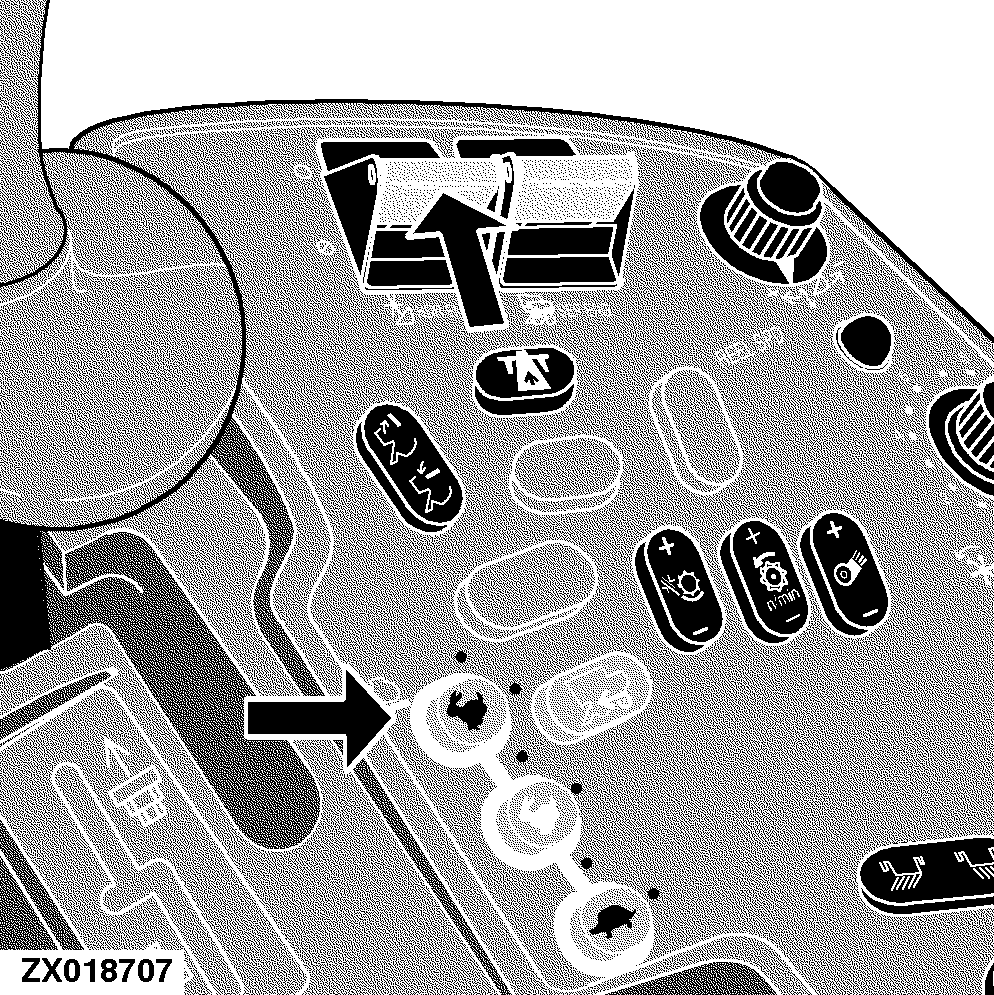

4. Lift and push header drive switch to start header.

5. Run header and feeder house in reverse to free "slug".

6. Stop header by switching yellow header drive switch off as soon as free of "slug".

7. Step on right side of pedal (A).

8. Momentarily engage header to allow shifter to engage in forward direction.

9. Repeat step 8, if necessary, to engage in forward direction.

10. Throttle engine to high idle.

11. Resume harvesting.

IMPORTANT: During reverser operation, never attempt to force "slugs" through combine by repeated cycling of reverser drive. Repeated cycling shortens life of components.
