Tailings Sensor Display

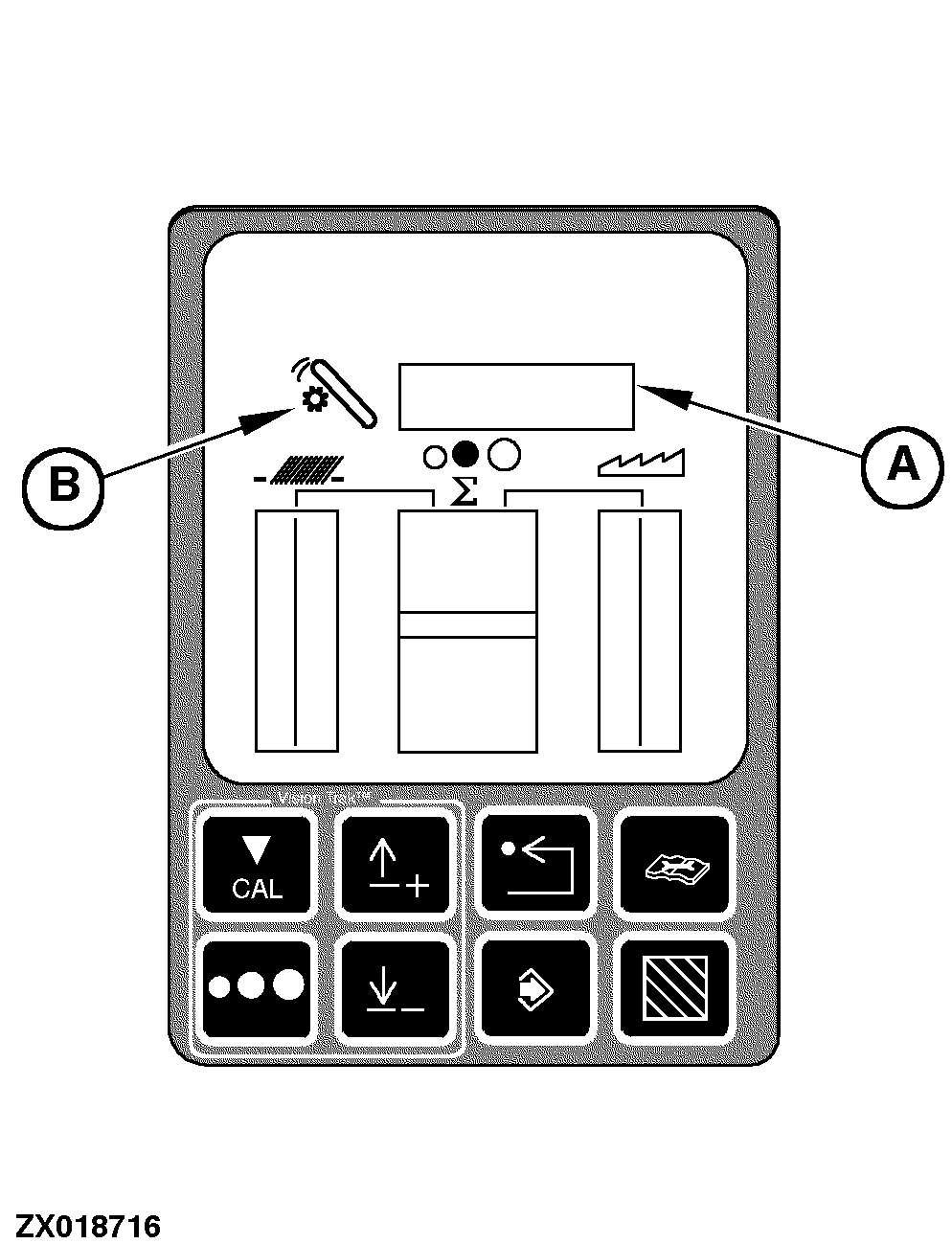

The tailings volume is displayed as a percentage of totally full in a horizontal bar graph (A) located in the upper portion of the display. The tailings icon (B) is located to the left of the bar graph.

For the tailings sensor display to operate:

• Engine must be running.

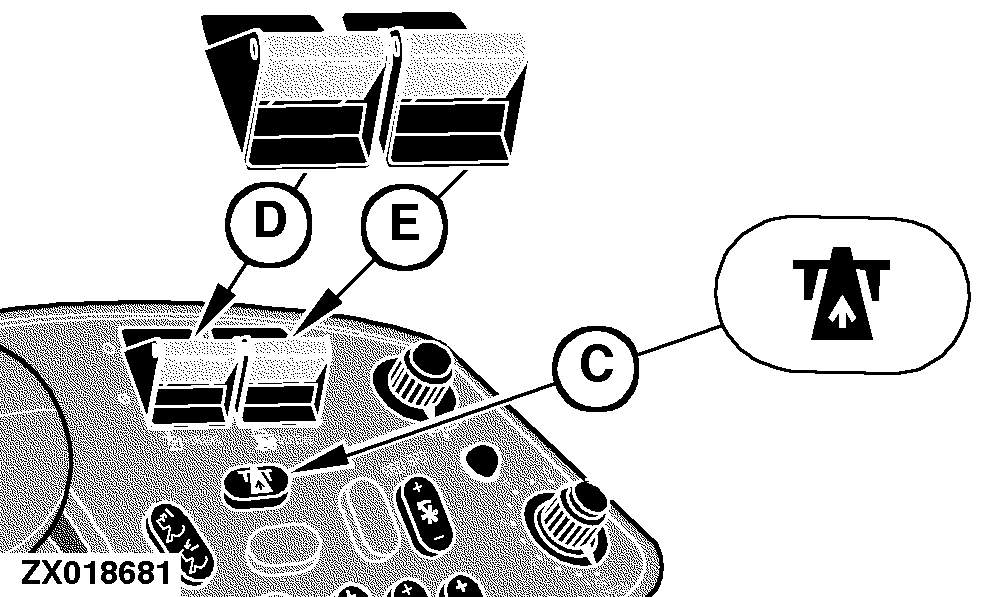

• Road safety switch (C) must be in field position.
• Header switch (D) and separator switch (E) must be engaged.

A-Horizontal Bar Graph
B-Tailings Icon
C-Road Safety Switch
D-Header Switch
E-Separator Switch
