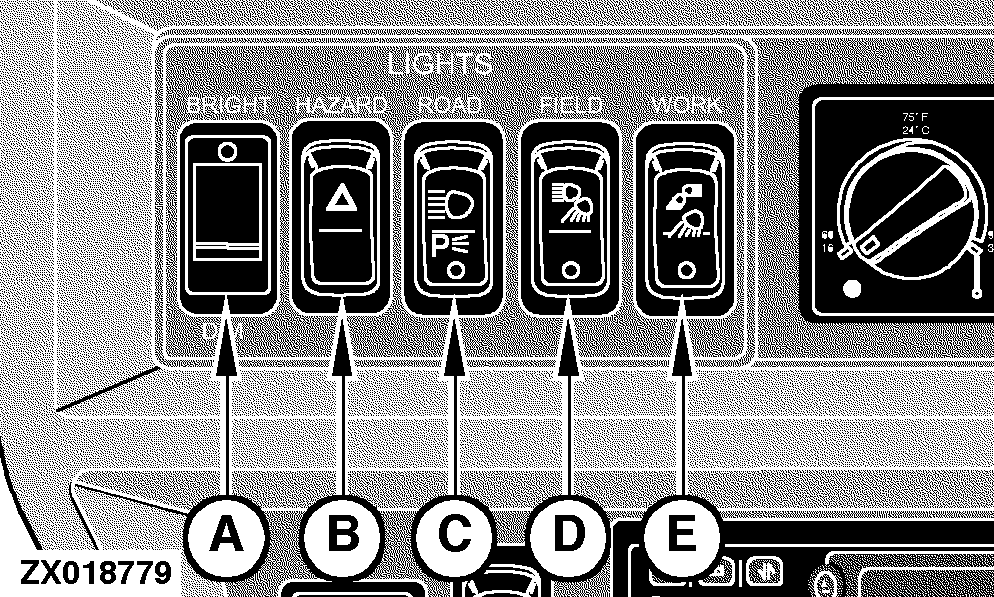

Light Switches
-
(A) Dimmer, for all cab interior lights.
-
(B) Hazard Warning: for all position lights on combine.
-
(C) Road: Warning (flashing) and four head lights, instrument lights, tail lights and turn signals when turn signal lever is used.
-
(D) Field: Grain tank and header lights (field position), auxiliary field lights, auger tube light and side finder lights on.
-
(E) Rear: Rear residue discharge lights
NOTE:

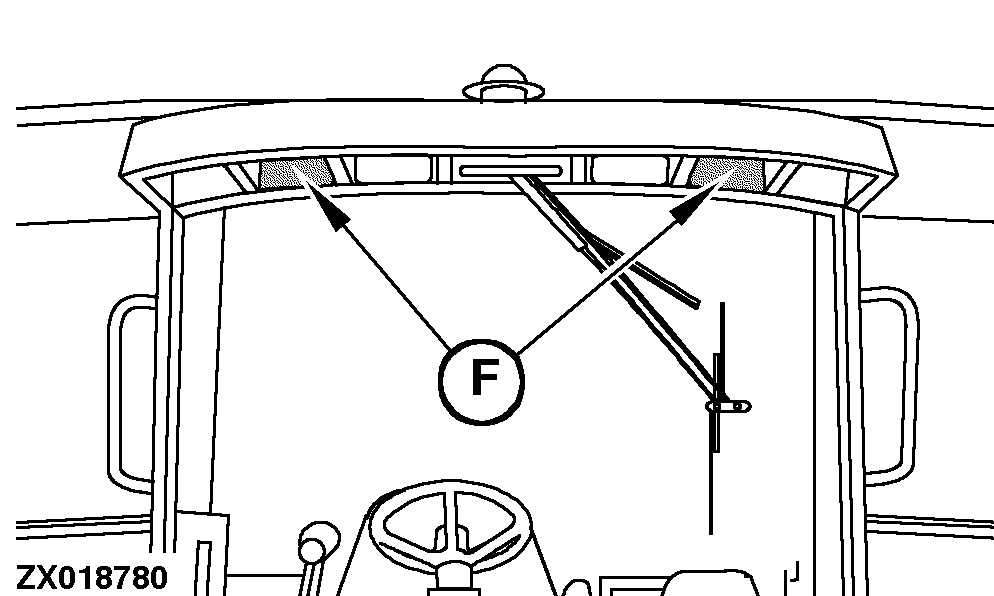

The combine is equipped with exit lighting. Two headlamps (F) will remain on for 90 seconds after the lights are turned off, operator leaves the seat and the key is removed.
A-Dimmer for Cab Interior Lights
B-Hazard Warning Lights
C-Road Lights
D-Field Lights
E-Rear Lights
F-Headlamps
|
|
