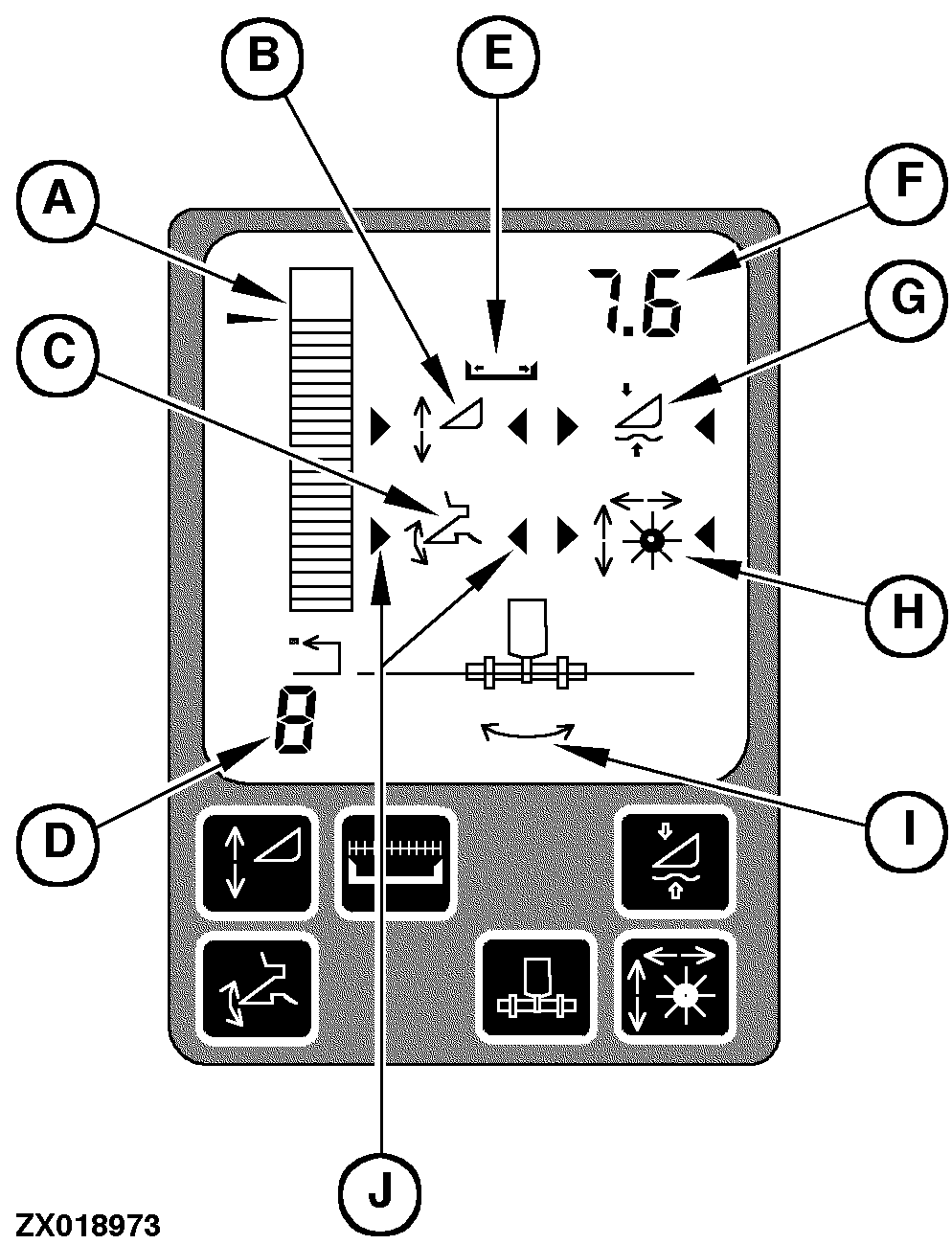

Automatic Header Control Display
-
A
indicates the header height or pressure relative to the ground
-
B
appears if header height mode is enabled
-
C
appears if resume to cut mode is enabled
-
D
indicates which activation button is pressed
-
E
indicates the full or part of header width
-
F
shows the header width or number of rows (For cutting platforms units are meters for metric system and feet for English system)
-
G
appears if ground pressure mode is enabled
-
H
appears if reel resume mode is enabled
-
I
appears if lateral tilt mode is enabled
-
J
appears if any mode is activated
Only one mode can be activated, Header Height Control (B) or Resume to Cut (C) or Ground Pressure (G) indicated by arrows.
If any of the above modes is activated, reel resume and lateral tilt will be activated too, if enabled.
A-Header Height or Pressure Bar Graph Indicator
B-Header Height Control Icon
C-Resume To Cut Icon
D-Activation Button 1, 2 or 3 Display
E-Header Width Icon
F-Header Width
G-Ground Pressure Icon
H-Reel Position Icon
I-Header Tilt Angle
J-Arrows
|
