Diagnostic Trouble Codes
Diagnostic Trouble Code Priorities
Each Diagnostic Trouble Code (DTC) has a priority. The priority of the diagnostic trouble code is indicated in the way the diagnostic trouble code is displayed to the operator:
-
Priority 1 - The tachometer display will stop normal function and the diagnostic trouble code will be displayed. This indicates a problem that requires the combine be stopped, the engine shut off immediately and the problem corrected. The tachometer will show the diagnostic trouble code until the problem is solved
-
Priority 2 - The tachometer Diagnostic lndicator comes on. This indicates a problem that should be checked immediately
-
Priority 3 - Diagnostic trouble codes will be stored but it is not indicated to the operator
Each Control Unit is represented by an address:
-
ALL - All Control Units
-
A00 - Engine Control Unit
-
C00 - Armrest Control Unit
-
C03 - Cornerpost Control Unit
-
E00 - Tailings Master Sensor
-
E01 - Automatic Header Control Unit
-
E02 - Grain Loss Monitor Control Unit
Diagnostic Trouble Code Explanation:
-
A - Control Unit (Explanation see above), shown in the upper line
-
B -
S
uspected
P
arameter
N
umber (SPN), from 2 up to 6 digits are possible (for example 96, 100002), shown in the middle and lower line
-
C -
F
ailure
M
ode
I
dentifier (FMI), point and 2 digits, shown in the lower line
|

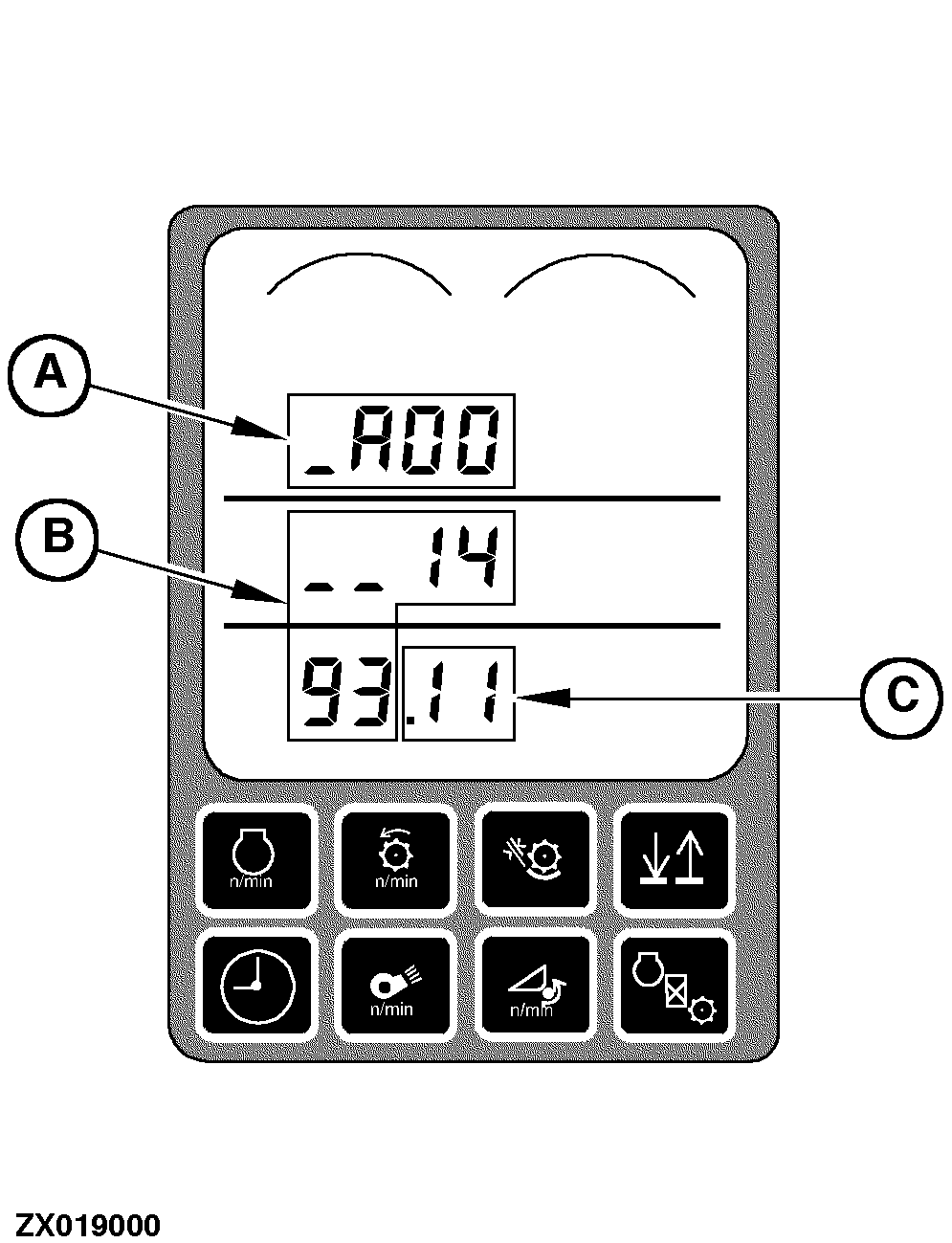

A-Control Unit
B-Suspected Parameter Number (SPN)
C-Failure Mode Identifier (FMI)
|
