Hydraulic Oil Level

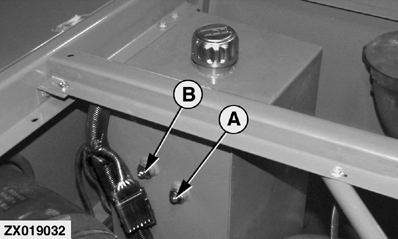

Check hydrostatic/hydraulic oil level with header on ground and all cylinders retracted. Oil must cover sight glass (A) and be below top of sight glass (B). Add oil as needed. Do not overfill.

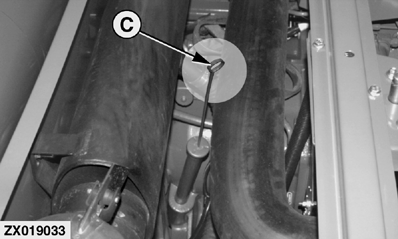

With engine off, check hydraulic oil at engine gearcase. Oil must not be below the low mark on dipstick (C). Do not overfill.

A-Sight Glass
B-Sight Glass
C-Dipstick

AG,OUZXMAY,232 -19-18NOV99-1/1
