Transporting Combine on a Trailer

1. Empty grain tank and remove header.

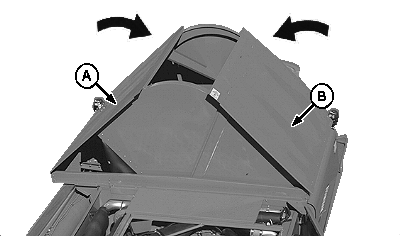

2. To reduce overall height, swing unloading auger back, close grain tank covers (A) and (B).

H51106

AG,OUZXMAY,262 -19-07SEP00-1/4

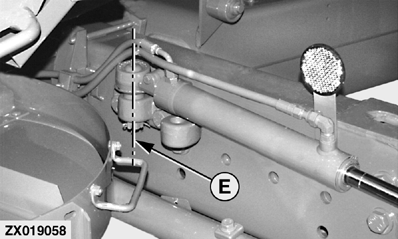

3. Adjust the rear axle to the smallest position, see "Rear Axle Position and Wheel Spacing-Upper Hole Position" in "Wheels, Axles and Additional Weights" Section. It is also required to attach steering cylinder (both sides) to position (E).

4. Drive combine on trailer and put hydrostatic lever in neutral.

ZX019058

AG,OUZXMAY,262 -19-07SEP00-2/4

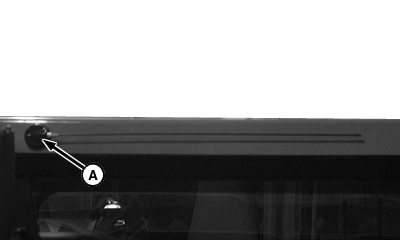

5. Fold radio antenna (A) down.

H54147

AG,OUZXMAY,262 -19-07SEP00-3/4

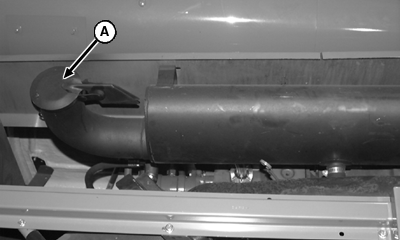

6. Tape exhaust pipe cap (A) closed to prevent damage to turbocharger.

7. Wire down cover over engine.

8. Wire side access door latches.

9. Swing rear warning lamps forward.

IMPORTANT: Fasten combine to trailer with chains.

H42609A

AG,OUZXMAY,262 -19-07SEP00-4/4
