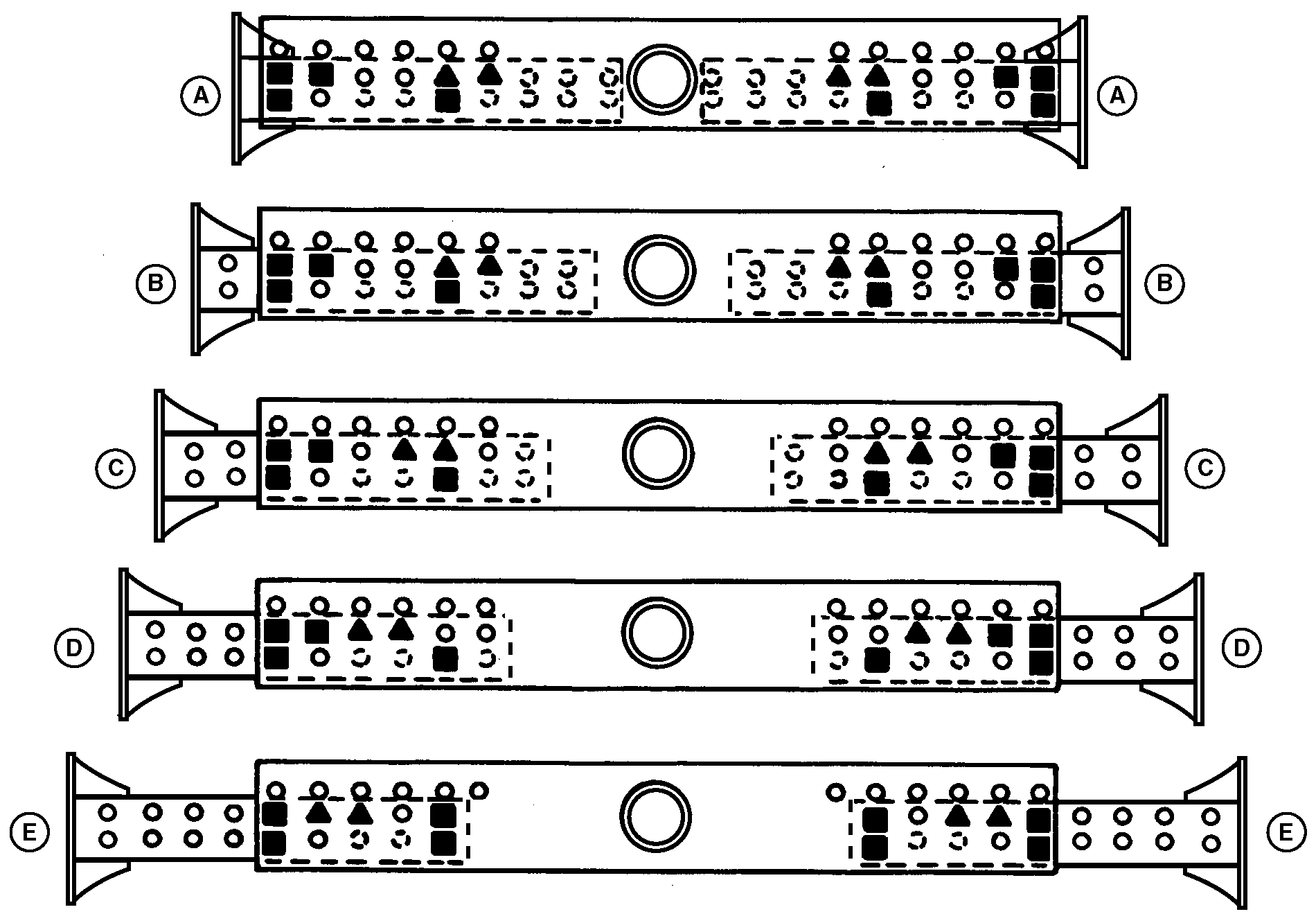

Rear Axle Position and Wheel Spacing-Lower Hole Position
|
| AXLE POSITION AND WHEEL SPACING FROM CENTER OF TIRES | REAR TIRE SIZES | |
|---|---|---|
| 16.9R-26 16.5/85-24 |
18.4-26 | |
| Aa | ||
| Bb | 2.88 m (9 ft 5 in.) | 3.05 m (10 ft) |
| C | 3.08 m (10 ft 1 in.) | 3.26 m (10 ft 8 in.) |
| D | 3.28 m (10 ft 9 in.) | 3.46 m (11 ft 4 in.) |
| E | 3.49 m (11 ft 5 in.) | 3.66 m (12 ft) |
| aNot possible | ||
| bMinimum tread width with chopper installed | ||
|
Clamp bolts (black squares). Steering cylinder mounting bolts (black triangles). |
NOTE: The steering cylinder anchors may move slightly if the combine is turned to full left or full right while on cement. |
AG,OUZXMAY,268 -19-12SEP00-1/1 |
