Header Harness Connector and Hydraulic Hose Storage

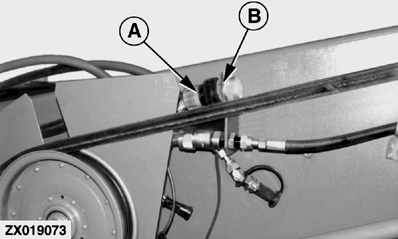

When header is removed, plug harness connector (A) into cap (B) to keep it clean and out of the way.

ZX019073

AG,OUZXMAY,327 -19-07SEP00-1/3

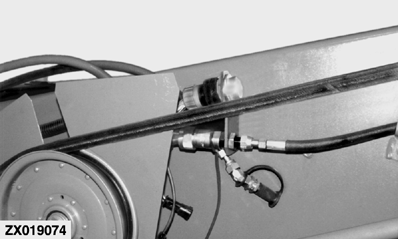

Left-hand hose storage.

ZX019074

AG,OUZXMAY,327 -19-07SEP00-2/3

IMPORTANT: Reel drive hoses (A) must be connected in storage position. Relief valve will operate and cause overheating and damage if hoses are not connected.

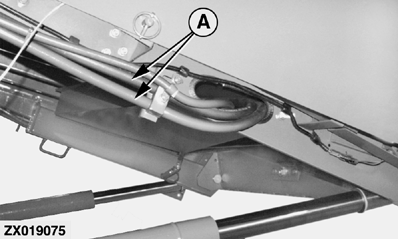

Right-hand hose storage.

ZX019075

AG,OUZXMAY,327 -19-07SEP00-3/3
