Hydraulic Cylinder Safety Stop

CAUTION: Engine must be off and key removed.

Cracking of hydraulic line fittings to lower feeder house results in an instantaneous dropping of feeder house and header.

Always insert the safety stop before working on raised header.

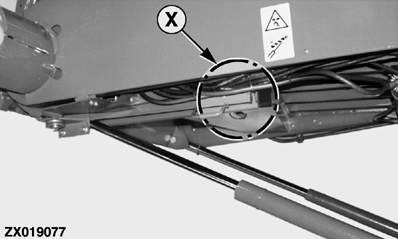

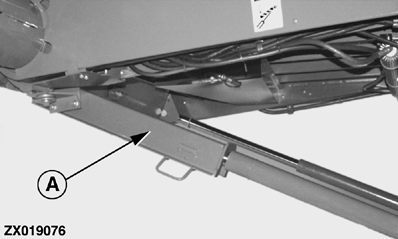

Before working on raised header, lower safety stop (A) onto hydraulic cylinder rod.

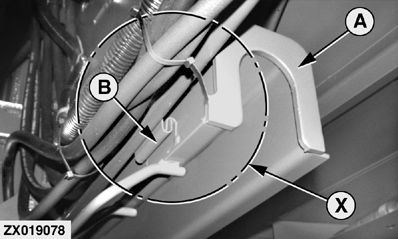

Before commencing field operation, remove safety stop (A) and secure it with latch (B).

AG,OUZXMAY,328 -19-22NOV99-1/1
