Feeder House Service Flaps

CAUTION: Engine must be off and key removed.

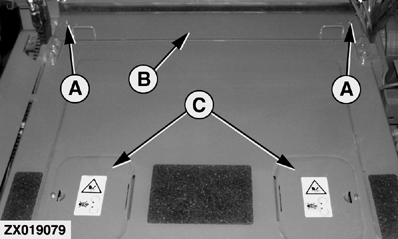

Loosen nuts (A) and slide towards combine. Pull service flap (B) forward to remove.

Remove bolts and lift service flaps (C).
