Bottom Feeder House Door and Feedplate Seal Support

CAUTION: Raise feeder house, lower safety stop, shut off engine and remove key.

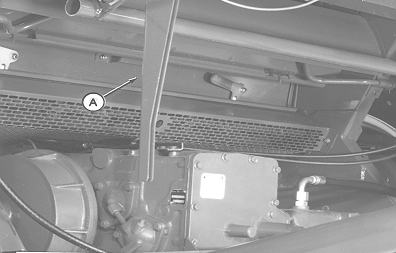

Move lever (A) down and to rear to open service flap. Pull lever forward and up to close.

AG,OUZXMAY,331 -19-24NOV99-1/2

IMPORTANT: Lever will be bent if left open when feeder house is lowered.

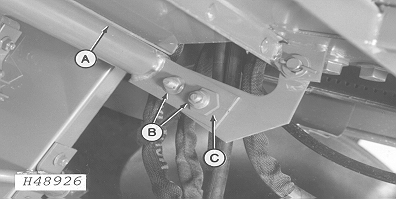

If feeder house service flap is not sealing tight at (A), grain leakage could occur.

Loosen cap screws (B) on both sides.

Turn eccentric (C).

Tighten cap screw securing eccentric.

Tighten remaining cap screws.

AG,OUZXMAY,331 -19-24NOV99-2/2
