Slip Clutch on Upper Feeder Shaft

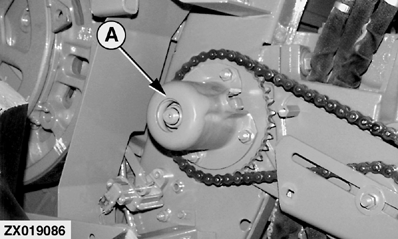

A non-adjustable slip clutch (A) protects the upper shaft.

If the slip clutch (A) is removed, tighten fixing nut to specification. Do not grease slip clutch jaws.

Specification

Nut -Torque 200 N·m (150 lb-ft)

ZX019086

Shields Removed for Clarity

AG,OUZXMAY,336 -19-24NOV99-1/1
