Dual-Range POSI-TORQ™ Cylinder Drive

The dual-range cylinder drive has a high range (direct drive) of 350-950 rpm and a low range (reduction drive) of 200-475 rpm.

POSI-TORQ is a trademark of Deere & Company.

AG,OUZXMAY,337 -19-24NOV99-1/3

IMPORTANT: Use slowest possible speed with large seed crops to reduce seed damage.

CAUTION: Shut off engine and remove key.

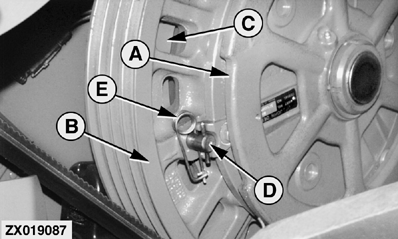

Align notched area of wheel (A) to one of three holes in gear case sheave (B). Notch area may have to be rotated 360° up to three times to align holes in cylinder drive sheave and speed pickup casting (C).

Insert pin (D) in hole and into speed pickup casting.

Insert safety pin (E) through pin and both sides of lip surrounding hole. Lock safety pin.

A-Wheel
B-Gear case sheave
C-Casting
D-Pin
E-Safety pin

AG,OUZXMAY,337 -19-24NOV99-2/3

CAUTION: Shut off engine and remove key.

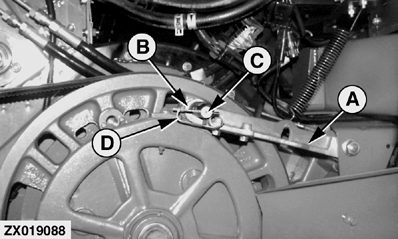

Pull down on arm (A) and align lug (B) on torque wheel with arm (A).

Insert pin (C) through hole in arm and lug as far as it will go.

Insert safety pin (D) through pin (C) on both sides of tabs on arm. Lock safety pin.

Cylinder will now operate in reduced drive at 200-475 rpm.

A-Arm
B-Torque wheel lug
C-Pin
D-Safety pin
