Filler Covers (Attachment)

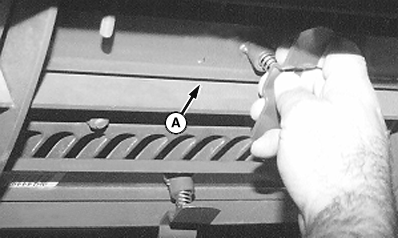

Filler covers (A) can be installed on the bottom of the tine separators to help reduce trash on the precleaner and chaffer.

Install the covers one section at a time starting at the rear of the tine separator (install just enough covers to reduce the load on the precleaner and chaffer to your acceptable level).

After closing off each section, periodically check the separator for losses. When losses begin to appear in the separator, remove the previously installed set of covers. The filler covers are available from your John Deere dealer.

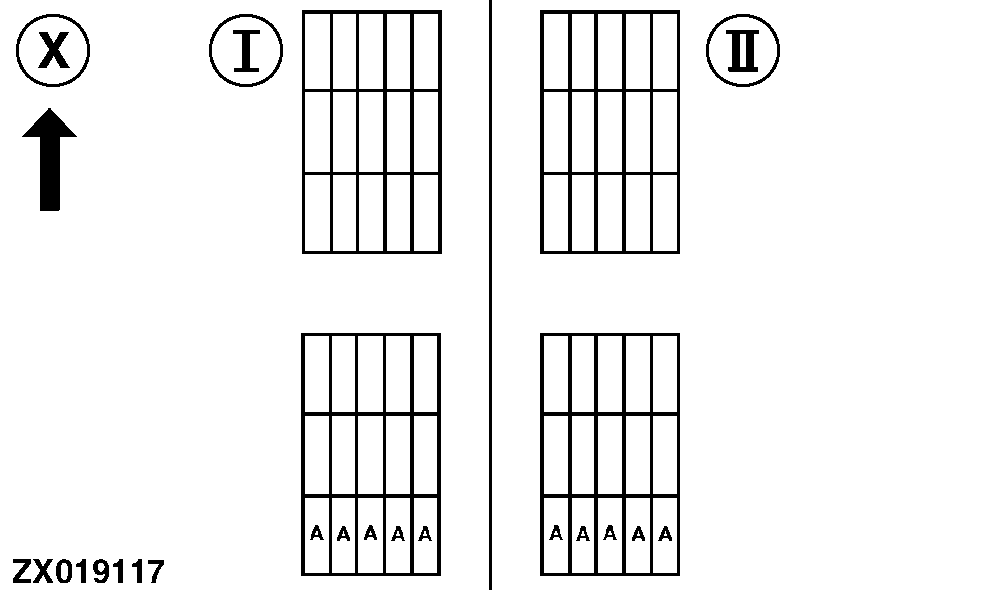

A-Filler Covers
I-Left-Hand Side
II-Right-Hand Side
X-Driving Direction

AG,OUZXMAY,359 -19-27NOV99-1/1
