Adjusting Tailboard Position

IMPORTANT: Always place tailboard into lowest position when not chopping.

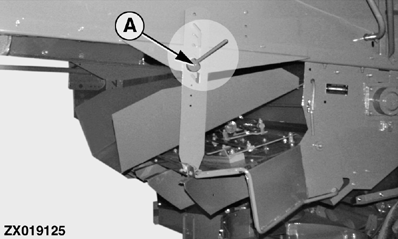

Place handle (A) in top slot for baling or windrowing.

Place handle in bottom slot for chopping.

To adjust, loosen handle on both sides and raise up on rear corner of tailboard.

AG,OUZXMAY,362 -19-27NOV99-1/1
