Adjusting Counter-Knives

The length of the chopped material can be modified by pivoting the counter-knives to a different angle.

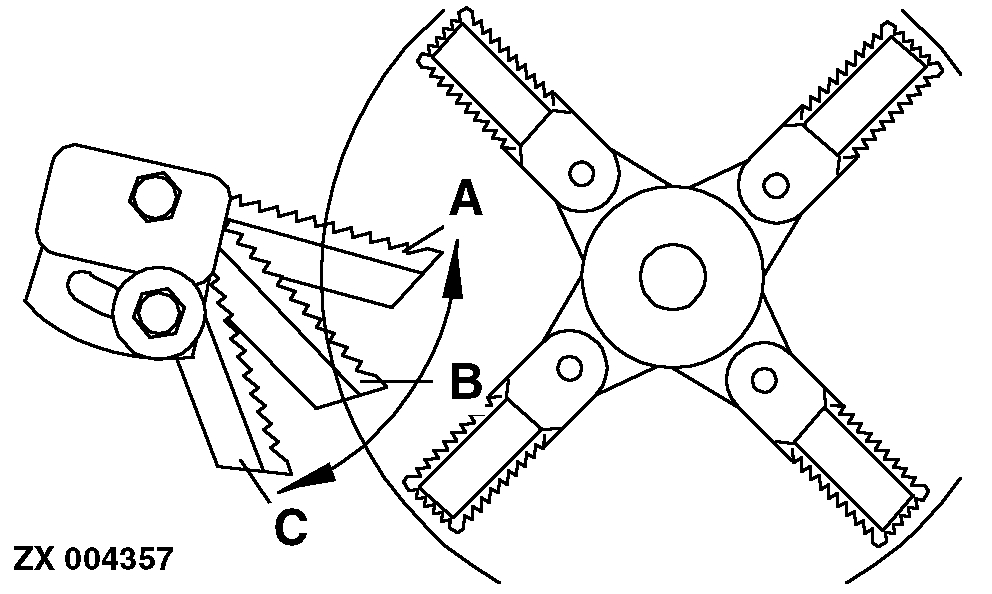

Recommended counter-knife positions:

  • A - Counter-knives flat for dry straw
  • B - Counter-knives at slight angle for damp straw and weeds.
  • C - Counter-knives at extreme angle for rape and pea straw.
ZX004357

AG,OUZXMAY,364 -19-27NOV99-1/2

NOTE: When chopping with serrated knives, pivot the counter-knives slightly to prevent straw deposits from building up on the knives.

Adjust Counter-Knife Position

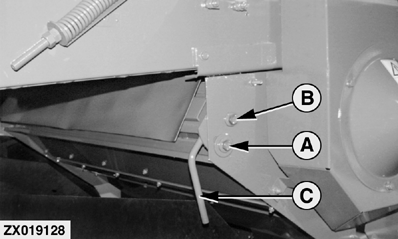

To adjust the counter knives, slacken off screws (A) and (B) at both sides.

Adjust the angle of the counter-knives at lever (C).
