Removing the Chaff Spreader

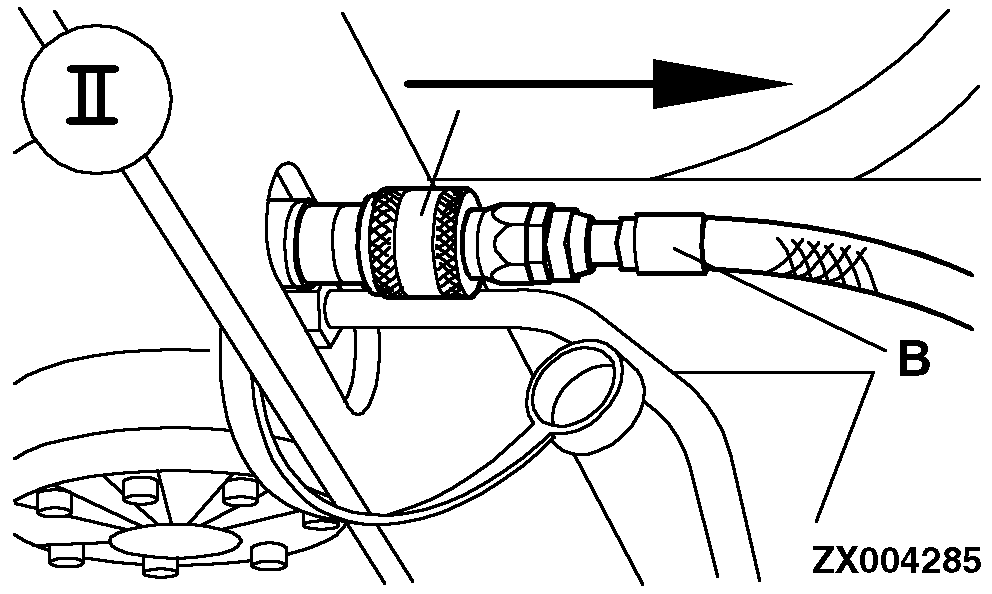

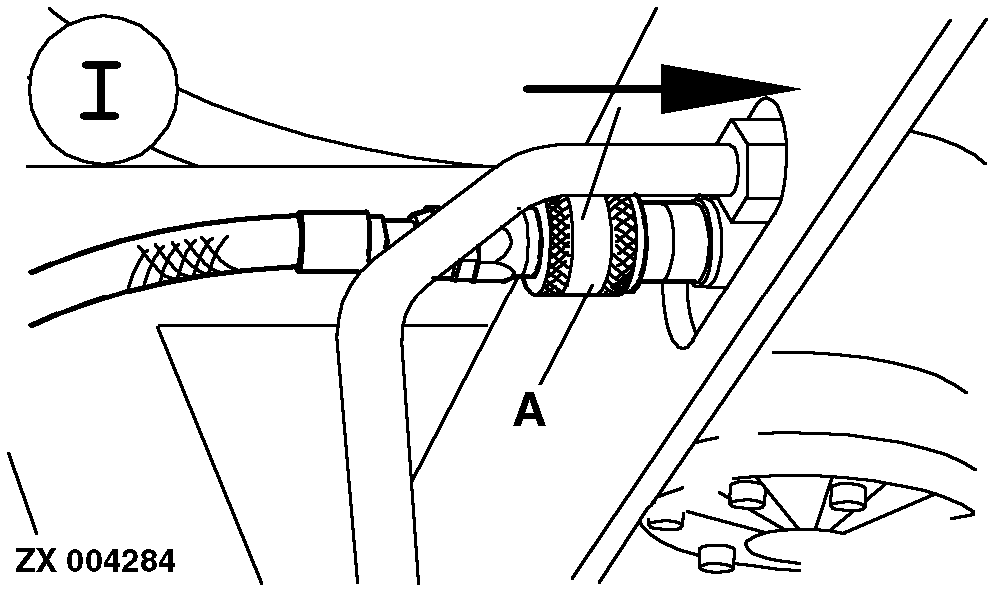

To remove the chaff spreader, disconnect the hydraulic hoses (A) and (B) from the chaff spreader.

IMPORTANT: Insert the two ends of the hydraulic hoses together. This makes the chaff spreader inoperative. Secure the hydraulic hoses so that they cannot be damaged during operation.

Use the protective caps to prevent dirt from getting into the openings in the chaff spreader.

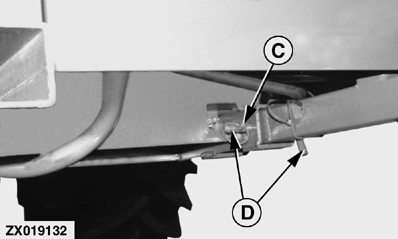

On both sides remove quick lock pin (C) and drilled pin (D) securing chaff spreader to support.

Use two persons or a safe lifting device and pull the chaff spreader out of the support.


I-Pressure Connection
II-Return Connection
A-Pressure Hose
B-Return Hose
C-Quick Lock
D-Drilled Pin
