Removing Compressor Drive Belt

causym CAUTION: Turn off engine and remove key.

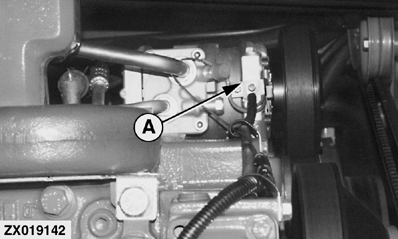

NOTE: The compressor (A) is located on the front side of the engine. To access the compressor, remove the engine service panel located on the rear wall of the grain tank.

Remove rotary screen drive belt, see "Removing Rotary Screen Drive Belt" in Section Service - Drives and Shields.

ZX019142

AG,OUZXMAY,388 -19-28NOV99-1/2

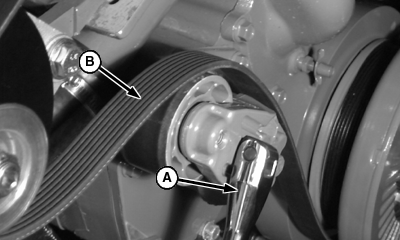

To remove belt, insert breaker bar (A) into square hole in idler to release tension on belt.

Remove drive belt (B).

H55694

AG,OUZXMAY,388 -19-28NOV99-2/2
