Fuses and Relays (Central Electronics Box)

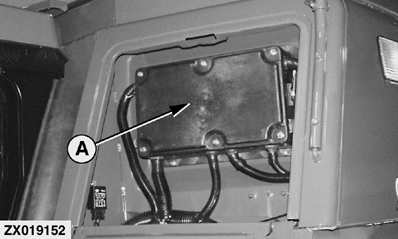

Fuses, located on the power distribution board in the central electronics box (A), provide individual circuit protection.

Open door and brush out any dust. Release latches (B). Remove cover with circuit boards.

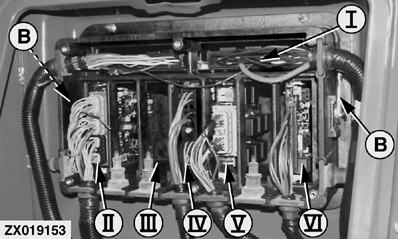

A-Central Electronics Box
B-Latches
I-Power Distribution Board Number 1
II-Header Controller
III-Power Distribution Board Number 3
IV-Reel Speed Board
V-Power Distribution Board Number 2
VI-Automatic Header Control Unit
