Power Distribution Board - Number 1

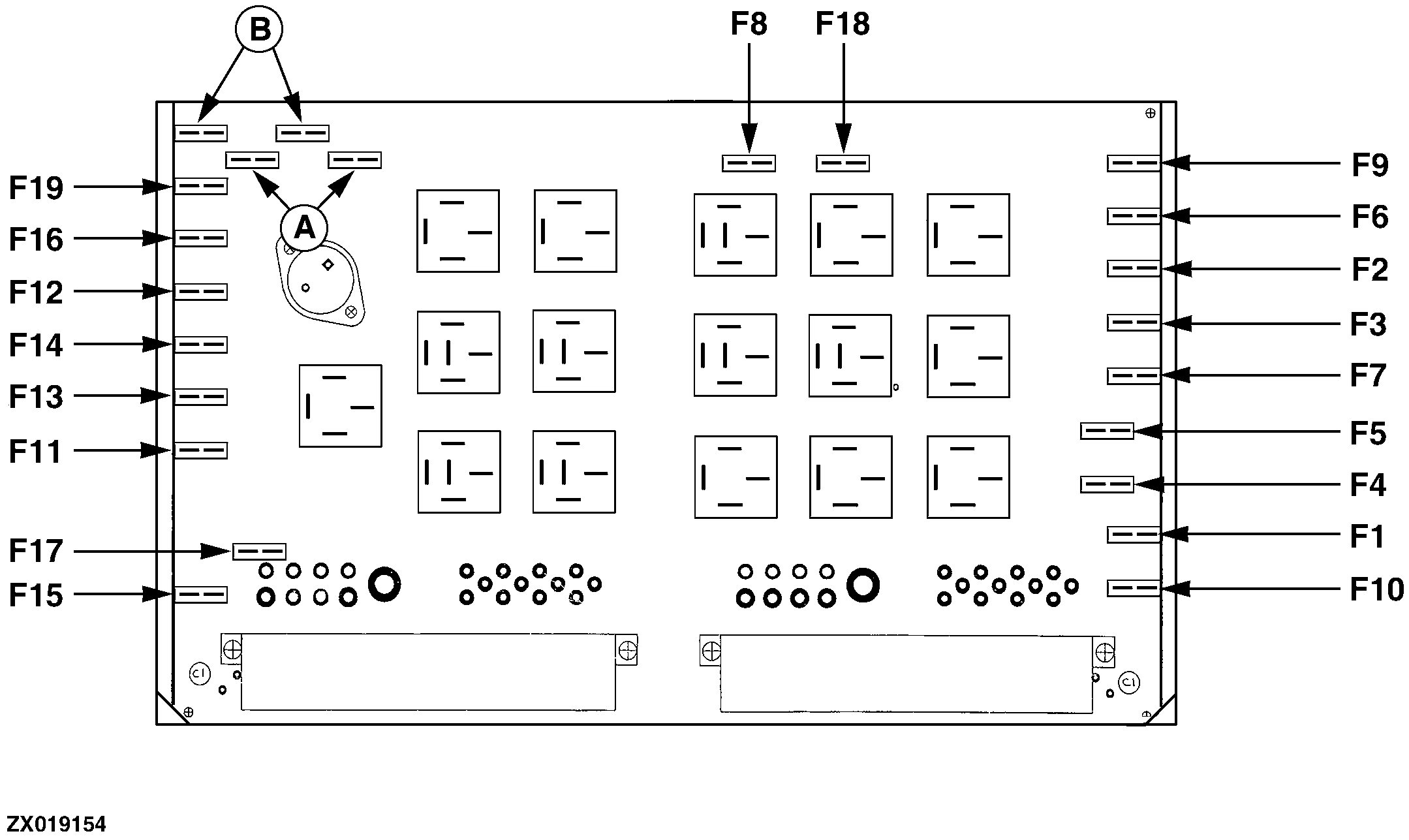

Power Distribution Board - Number 1, Fuses
|
Fuse Identification
A
Spare 30 amp Fuses
B
Spare 20 amp Fuses
F1
20 A, Flasher Power
F2
20 A, Rear Lamp Power
F3
20 A, Switched Flasher Power)
F4
20 A, Left Position Lamps
F5
20 A, Right Position Lamps
F6
30 A, Field Lamp Power
F7
30 A, Field Lamp Power
F8
20 A, Driving Lamp Power
|
F9
30 A, Beacon Lamp Power
F10
20 A, Light Switch Power
F11
20 A, Engine Running Power
F12
20 A, EMP Power
F13
30 A, Concave Adjust Power
F14
30 A, Auger Fold Power
F15
30 A, Control Power
F16
20 A, Wiper Power
F17
20 A, Ignition Power
F18
30 A, Fan Speed Adjust
F19
20 A, Service Power
|
|
|
AG,OUZXMAY,403 -19-01DEC99-1/2
|

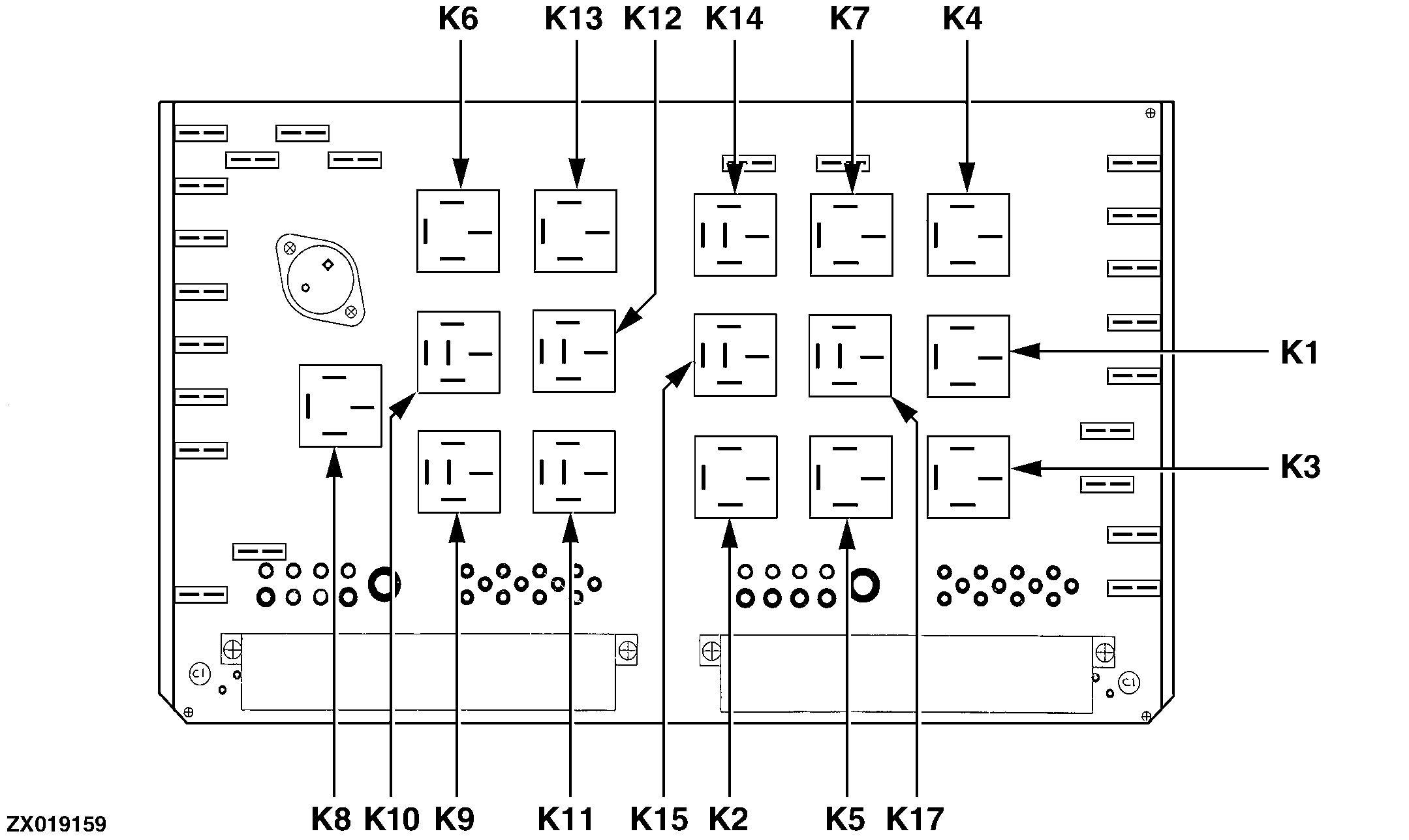

Power Distribution Board - Number 1, Relays
|
Relay Identification
K1
Rear Lamps
K2
Switched Flasher Power
K3
Position Lamps
K4
Field Lamps
K5
Field Lamps
K6
Driving Lamps
K7
Beacon Lamps
|
K8
Engine Running Power
K9
Concave Decrease
K10
Concave Increase
K11
Auger Fold
K12
Auger Unfold
K13
Ok To Start
K14
Fan Speed Decrease
K15
Fan Speed Increase
K17
Park/Driving Lamps
|
|
|
AG,OUZXMAY,403 -19-01DEC99-2/2
|
|
