Header Height Potentiometer

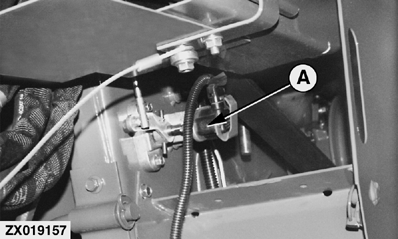

Header height potentiometer (A) is attached to the left-hand side of the feeder house and is connected to the combine frame by means of a rod.

The potentiometer transmits varying voltage signals to the printed circuit board depending on the position of the feeder house. The min. and max. values are programmed when calibrating.
