Power Distribution Board - Number 2

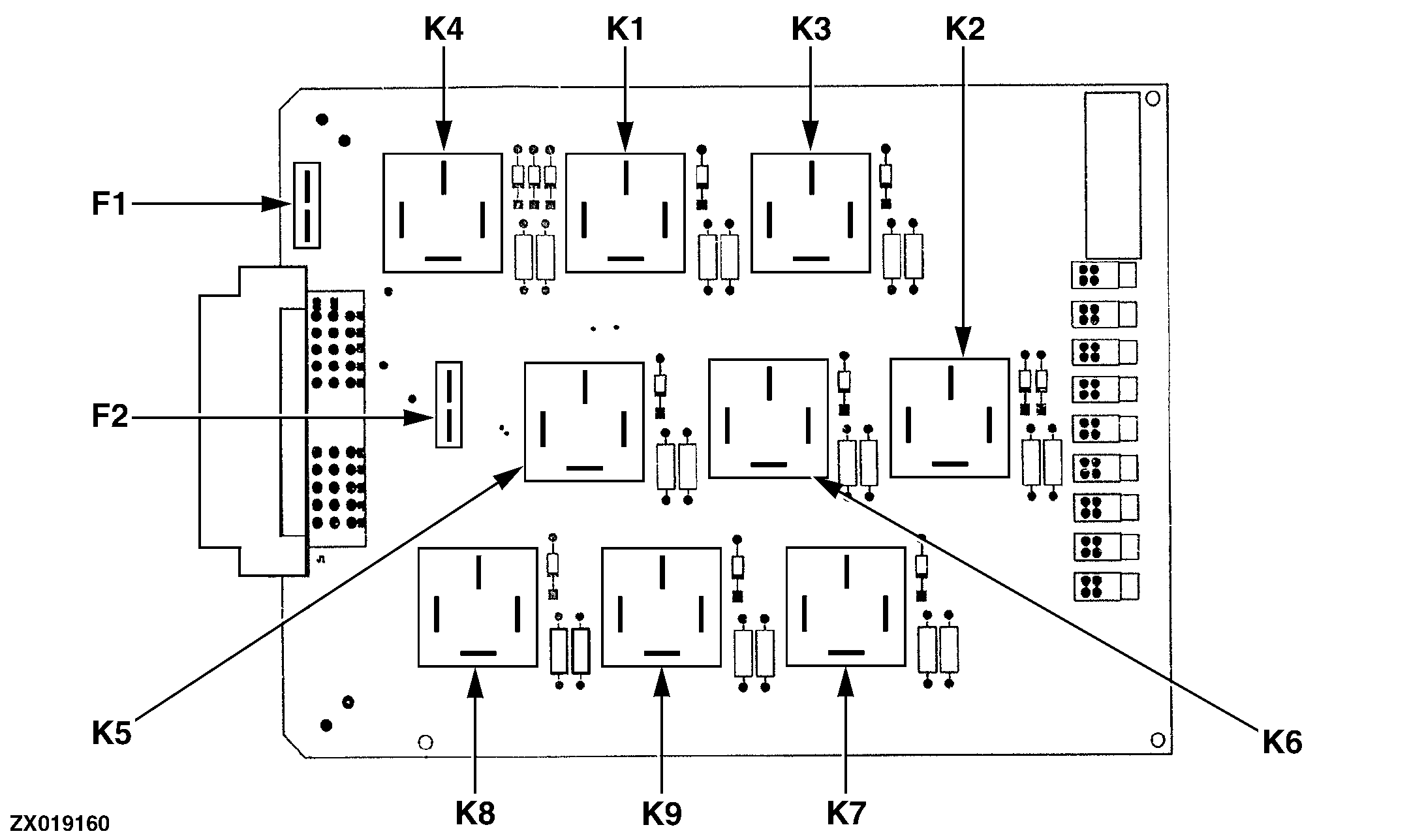

Power Distribution Board - Number 2, Fuses and Relays
|
Fuses
F1
20A, Rear Lamps
F2
20A, Spare Fuse
Relays
K1
Auger Swing In
K2
Auger Swing Out
|
K3
Trans Lockout
K4
Rear Lamps
K5
Backup Alarm
K6
Rear Lamps Interlock
K7
Threshing Speed Change
K8
Auger Light
K9
Stubble Lights
|
|
|
AG,OUZXMAY,412 -19-03DEC99-1/1
|
|
