Grain Tank Access

causym CAUTION: Shut off engine and remove key.

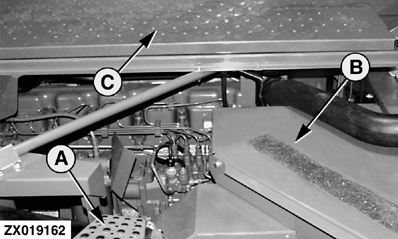

Use step (A) on shield, skid strip (B) and engine cover (C) for grain tank access.

ZX019162

AG,OUZXMAY,417 -19-04DEC99-1/2

Unlock Grain Tank Covers

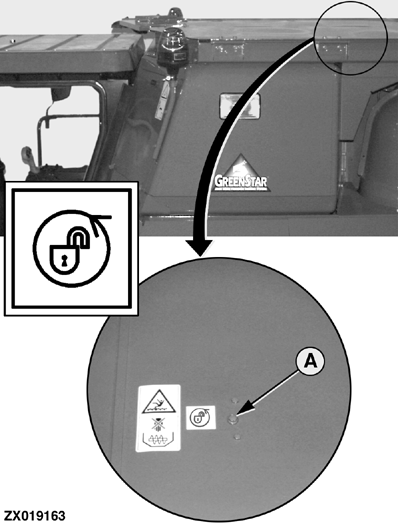

For grain tank access when grain tank covers are closed, turn bolt (A) on right-hand cover counterclockwise. The cover gas cylinder will raise the door.

ZX019163

AG,OUZXMAY,417 -19-04DEC99-2/2
