Grain Tank Drain Holes

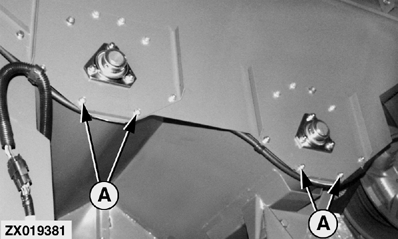

Grain tank drain hole doors are located on the right-hand end of both cross augers and must be opened during storage or for cleaning grain tank.

To open, loosen cap screws (A) and let doors in slots swing down.

AG,OUZXMAY,420 -19-04DEC99-1/1
