Adjusting Grain Tank Unloading Auger Covers

CAUTION: Shut off engine and remove key.

IMPORTANT: If these covers are open too far, the auger drive shear bolt may break repeatedly, or damage could occur to the augers or grain tank.

Adjust these covers down to slow unloading rate.

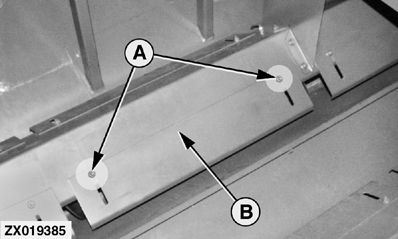

Loosen bolts (A) to adjust each cover (B).
