Replacing Cross Auger Drive Shear Bolt

CAUTION: Shut off engine and remove key.

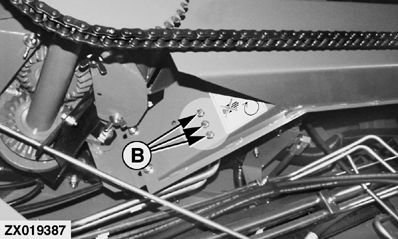

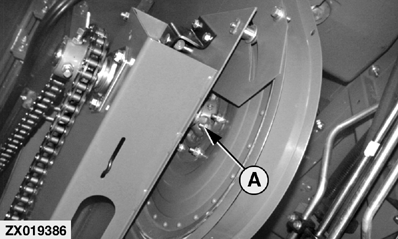

Shear bolt (A) protects the unloading auger system. Three extra bolts (B) are provided to the left of the drive.

IMPORTANT: Shear bolt (A) protects against overloading. Use only a M8 x 60 class 8.8 cap screw as a shear bolt (John Deere genuine part only).

Coat machined face and pilot shoulder of hub with grease whenever shear bolt is replaced.

IMPORTANT: Do not install a tire inner tube or a sack to end of unloading auger. Any restriction at end of auger can cause damage to the unloading auger system and could cause shear bolt failure.
