Replacing Engine Fan Belt

causym CAUTION: Shut off engine and remove key.

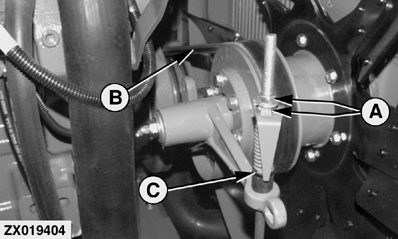

Loosen nuts (A) and remove belt (B).

After installing new belt, tighten nuts until washer (C) aligns with end of gauge.

ZX019404
