Replacing Rotary Screen Drive Belt

CAUTION: Shut off engine and remove key.

Remove engine fan belt, see "Replacing Engine Fan Belt" in this Section.

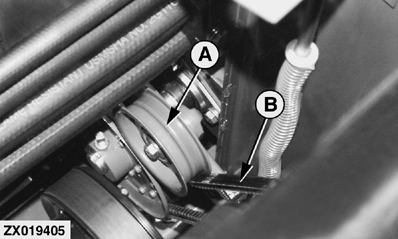

Raise idler (A) and remove drive belt (B).
