Replacing Rotary Screen Rake Bar

causym CAUTION: Turn off engine and remove key before cleaning rotary screen.

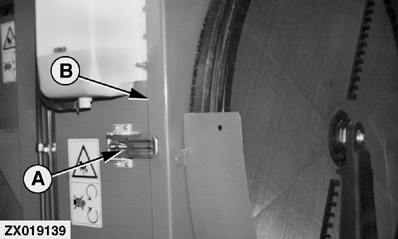

Pull latch (A) and open rotary screen door (B).

ZX019139

AG,OUZXMAY,444 -19-04DEC99-1/2

Remove Rake

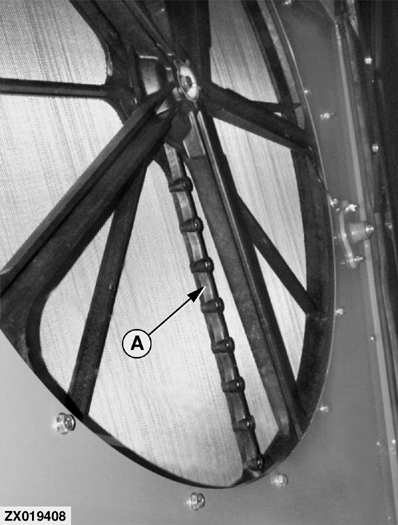

Remove screws from rake bar support (A).

Remove rake bar.

ZX019408

AG,OUZXMAY,444 -19-04DEC99-2/2
