AG,OUZXMAY,453 -19-04DEC99-1/2

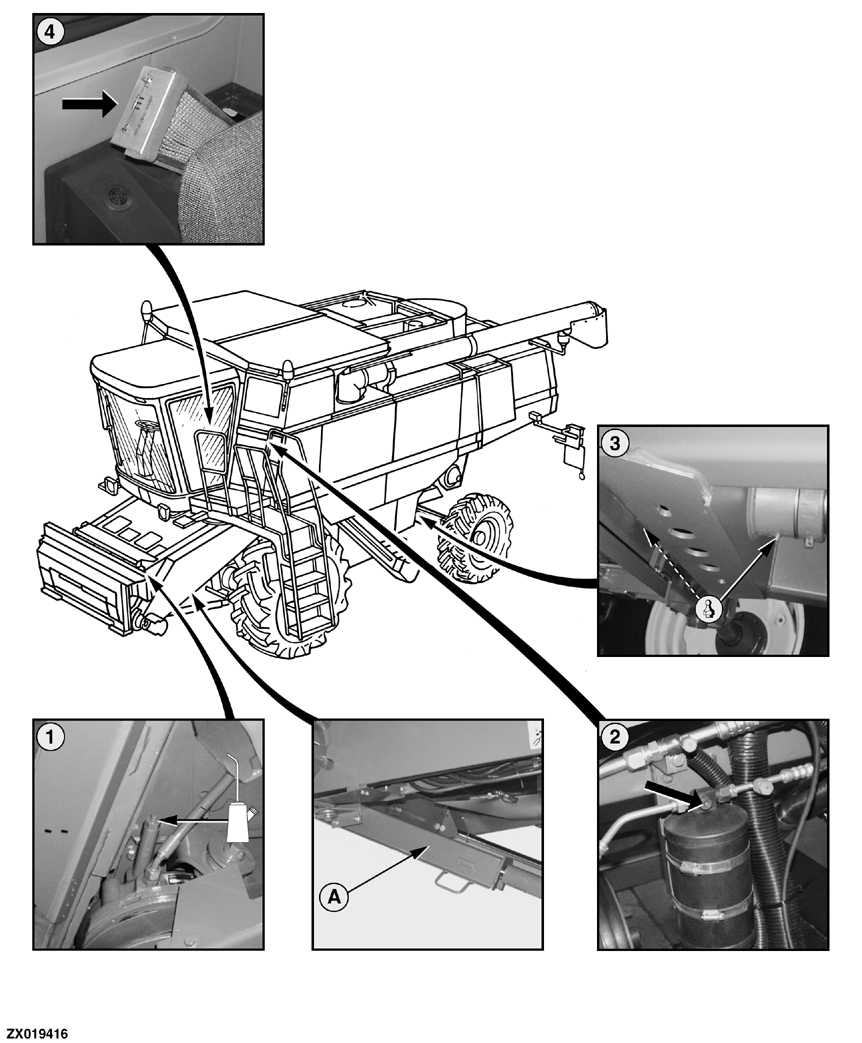

1. Reverser Gear Case - Raise feeder house and lower safety stop (A). Oil level must show on knurled part of dipstick. Add oil as needed.

2. Air Conditioning Sight Glass-If there are bubbles in the sight glass after the compressor has run for 30 seconds or more, see your John Deere dealer.

3. Rear Axle.

4. Recirculating Filter-Remove tray, reach in and lift out filter. Clean or replace filter. Reinstall filter. Be certain air flow arrow points toward the front of the combine.

AG,OUZXMAY,453 -19-04DEC99-2/2
