400 Hours or Yearly

ZX019419

AG,OUZXMAY,454 -19-04DEC99-1/2

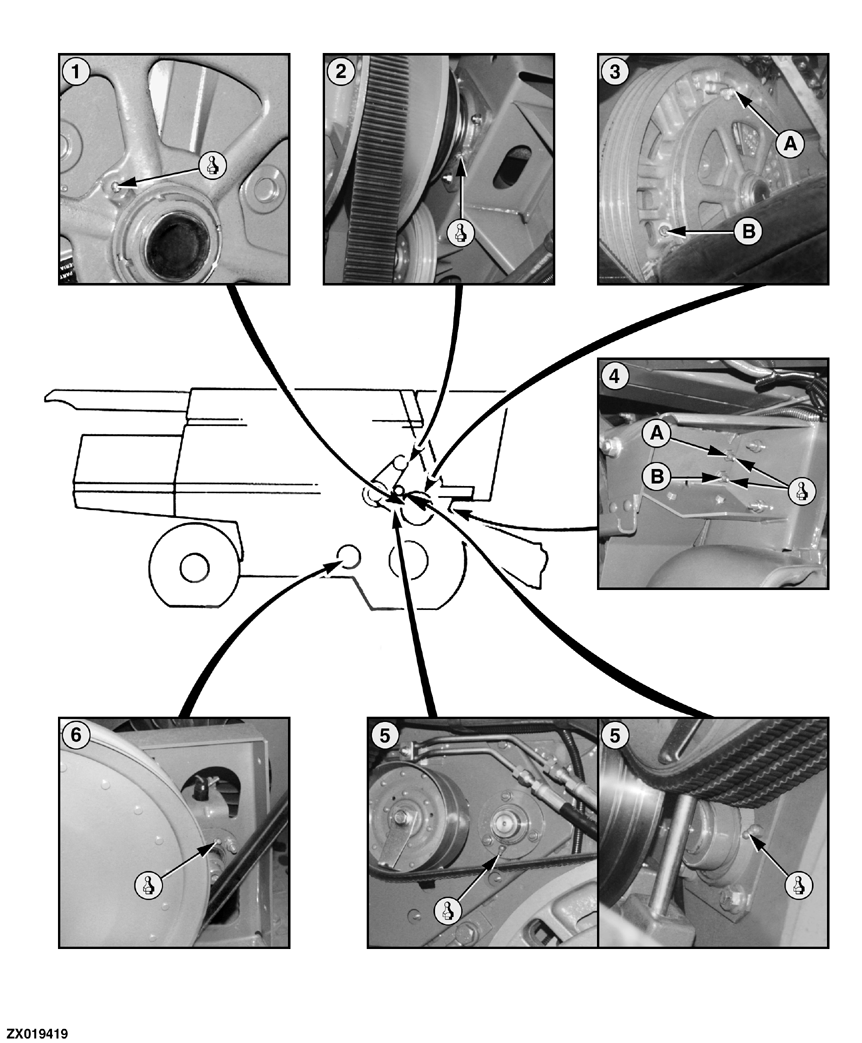

1. Dual Range Cylinder Drive Bearing.

2. Primary Countershaft Bearing.

3. Dual Range Cylinder Drive Gearcase-Check oil level. Arrow (A) must point up to check oil at plug (B). Oil must come to bottom edge of plug hole.

4. Right-Hand Lube Bank (Two Fittings):

  • A-Cylinder shaft bearing
  • B-Variable cylinder bearing.

5. Beater Bearing.

6. Fan Bearing (Both Sides).
