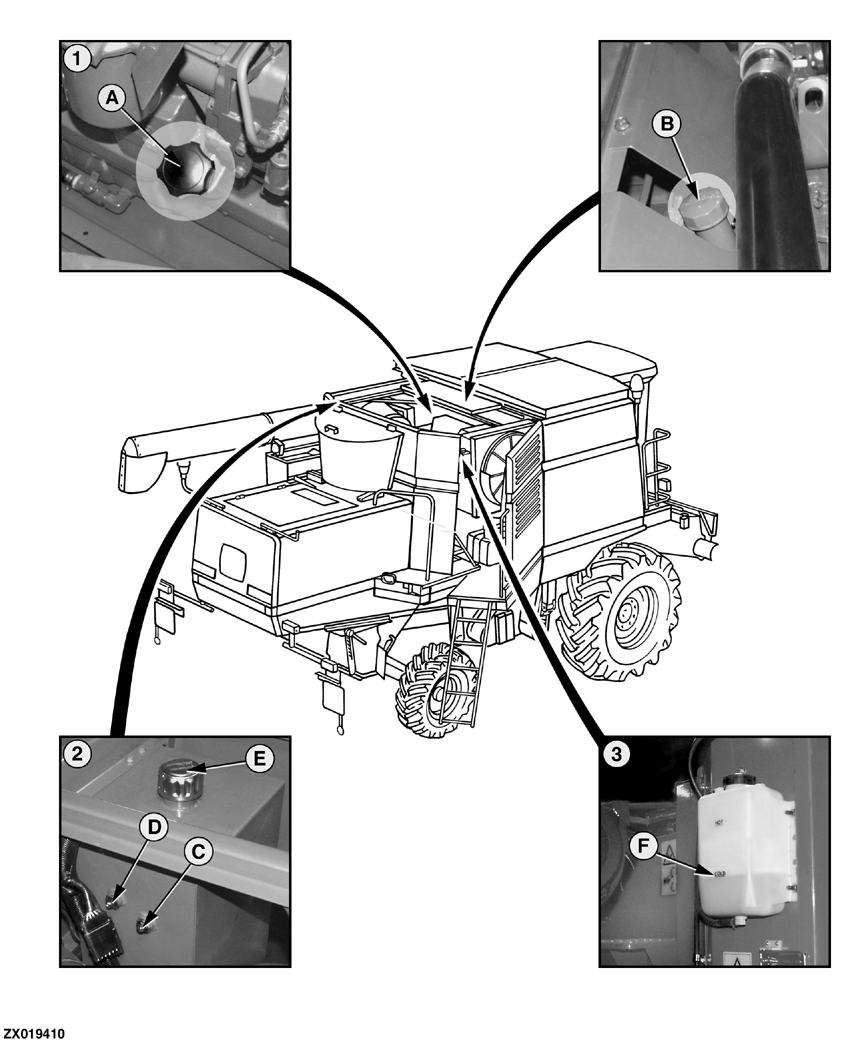

1. Engine oil - Check oil level at dipstick (A). Do not operate engine with oil level below bottom mark. Add oil at (B) as needed.

2. Hydrostatic/Hydraulic Oil - Check with header on ground.

Oil level must be above lower sight glass (C) and below top of upper sight glass (D). Add oil at (E) as needed.

3. Recovery Tank - Check coolant level with engine cold. Level should be up to the fill mark (F).
