AG,OUZXMAY,462 -19-08DEC99-1/2

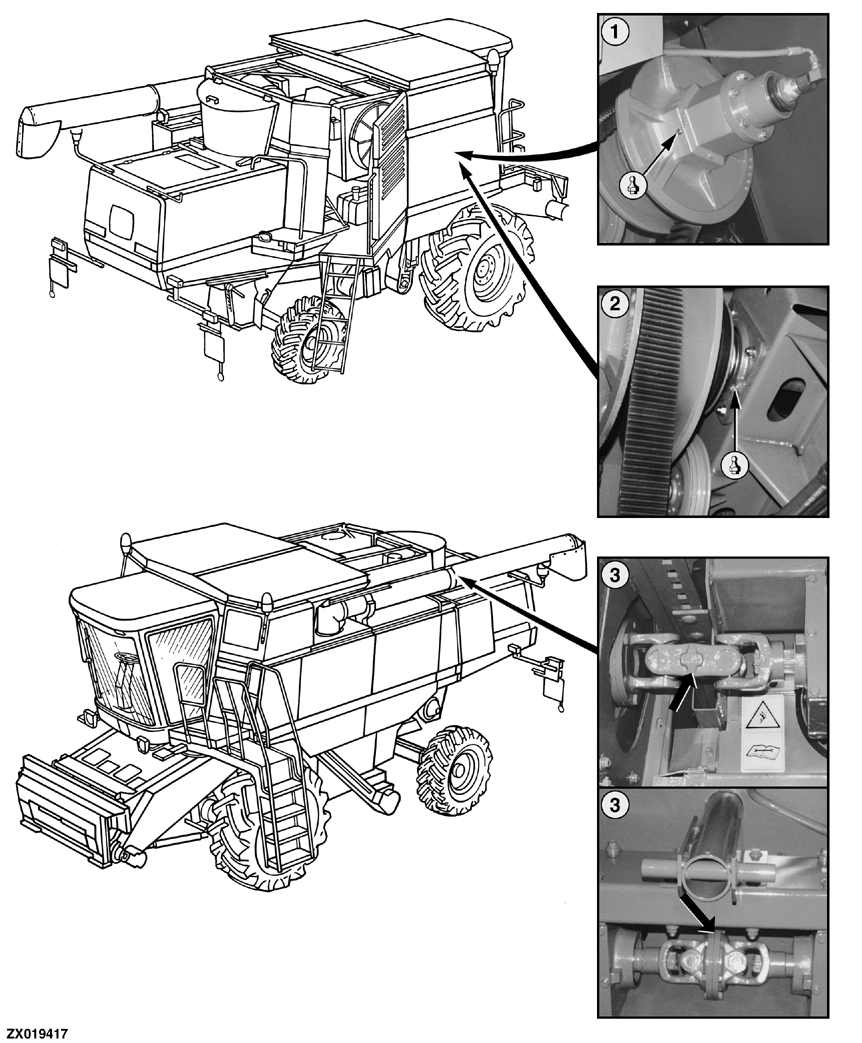

1. Cylinder Variable Drive Upper Sheave

IMPORTANT: Grease with sheaves closed. Pump 25 shots of grease into fitting. Do not over grease.

Cycle cylinder speed to distribute grease if drive is operated at high speed all the time.

2. Powershaft (both Sides).

3. Separator Drive Universal Joint.

AG,OUZXMAY,462 -19-08DEC99-2/2
