AG,OUZXMAY,463 -19-08DEC99-1/2

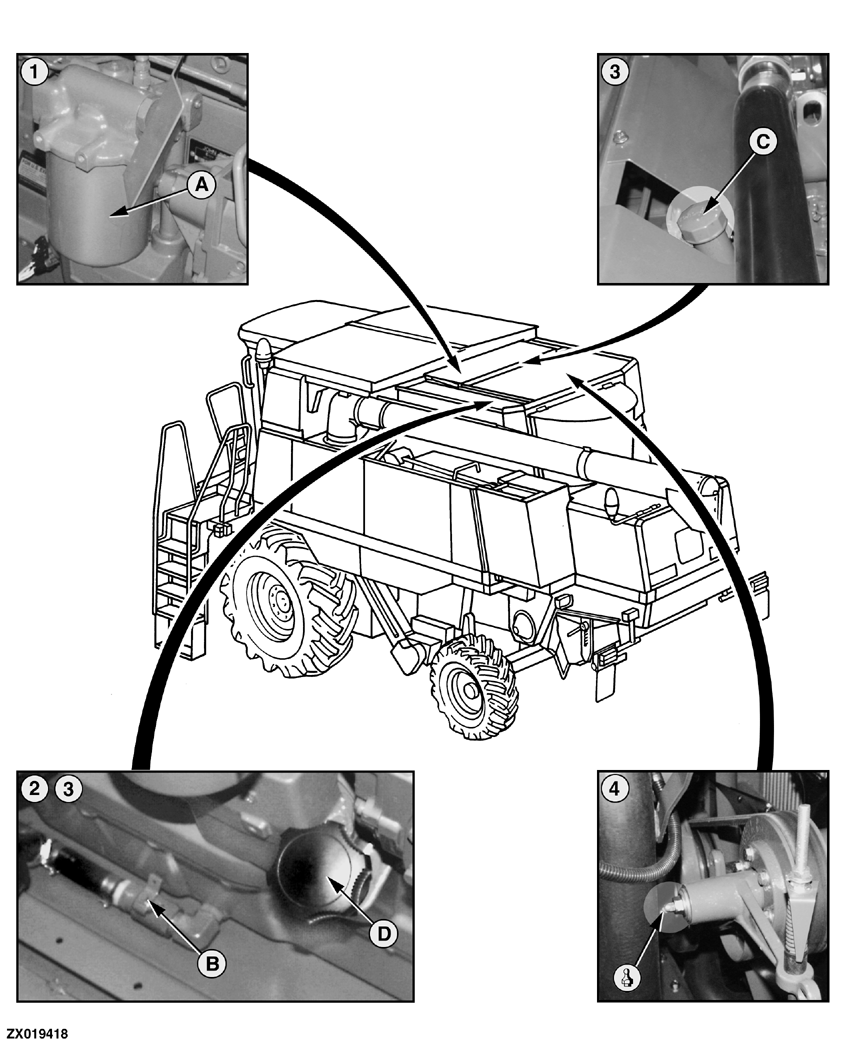

1. Engine Crankcase Filter (A) - Remove old filter and seal. Coat new seal with oil and install new filter.

2. Engine Crankcase-Turn handle (B) to drain oil into a bucket.

IMPORTANT: Change oil every 100 hours if fuel contains more than 0.7 per cent sulfur. Change oil every 250 hours

3. Engine Filler Cap (C)-Pull cap to fill. Check oil at dipstick (D) after filling.

IMPORTANT: Do not operate engine with oil level below low mark on dipstick.

4. Engine Fan Hub.

TORQ-GARD SUPREME is a trademark of Deere & Company.
PLUS-50 is a trademark of Deere & Company.

AG,OUZXMAY,463 -19-08DEC99-2/2
