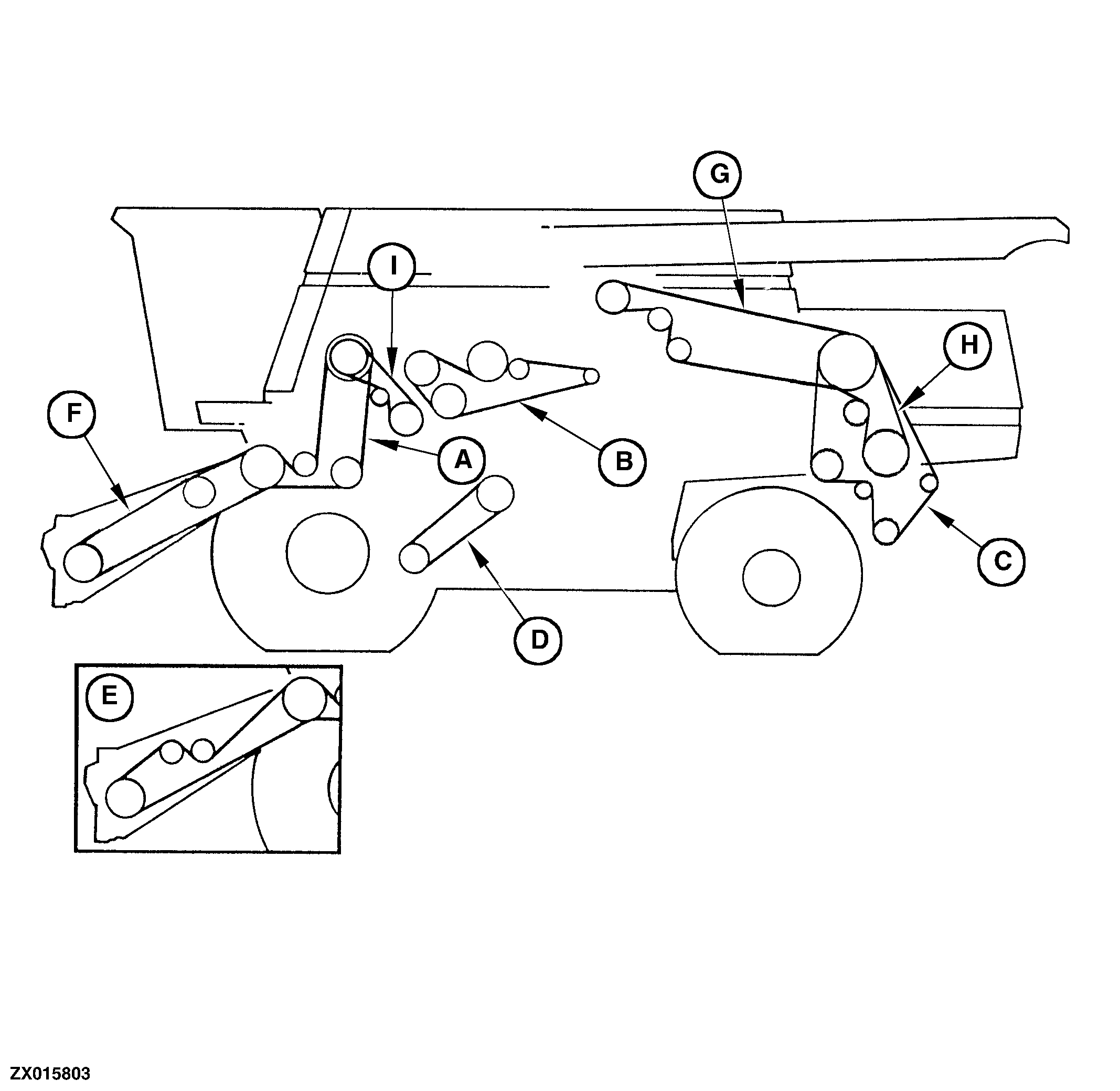

A-Header and reel pump drive
B-Unloading auger drive
C-Straw chopper and chaff spreader drive

D-Cleaning fan drive
E-Fixed speed feeder house drive

F-Variable speed feeder house drive
G-Tine separator main drive

H-Tine separator secondary drive
I-Beater drive

AG,OUZXMAY,464 -19-09DEC99-1/2

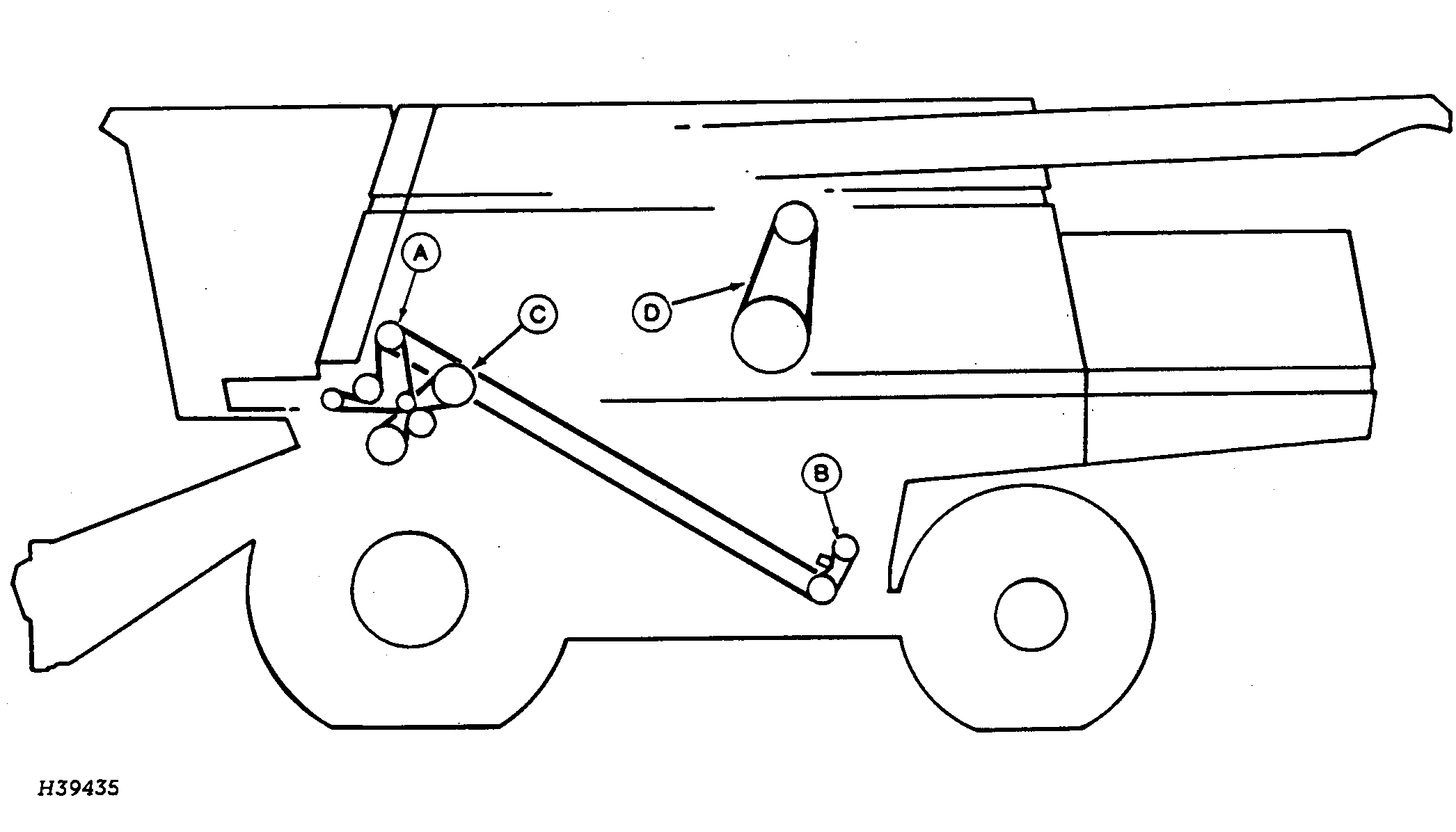

A-Upper tailings auger drive

B-Lower tailings auger drive

C-Stripper beater drive

D-Unloading system drive

Left-Hand Drives (Continued)

AG,OUZXMAY,464 -19-09DEC99-2/2
