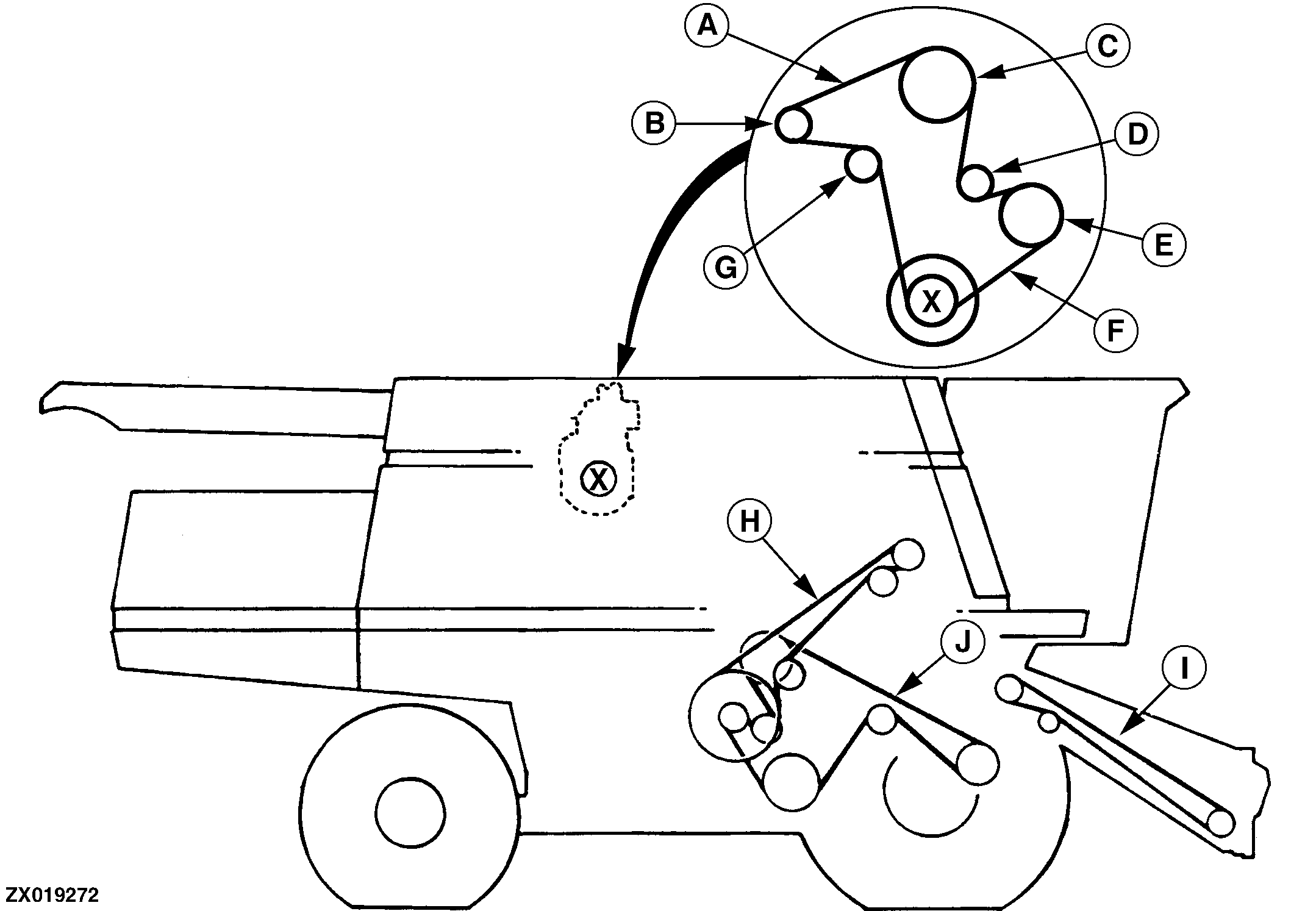

A-Engine Accessory Drive Belt
B-Alternator
C-Fan Pulley
|
D-Water Pump
E-Air Conditioning Compressor
F-Engine Crankshaft
|
G-Spring Loaded Idler
H-Secondary Countershaft Drive
I-Feeder Conveyor (Chain) Drive
|
J-Shoe and Conveyor Auger Drive
|

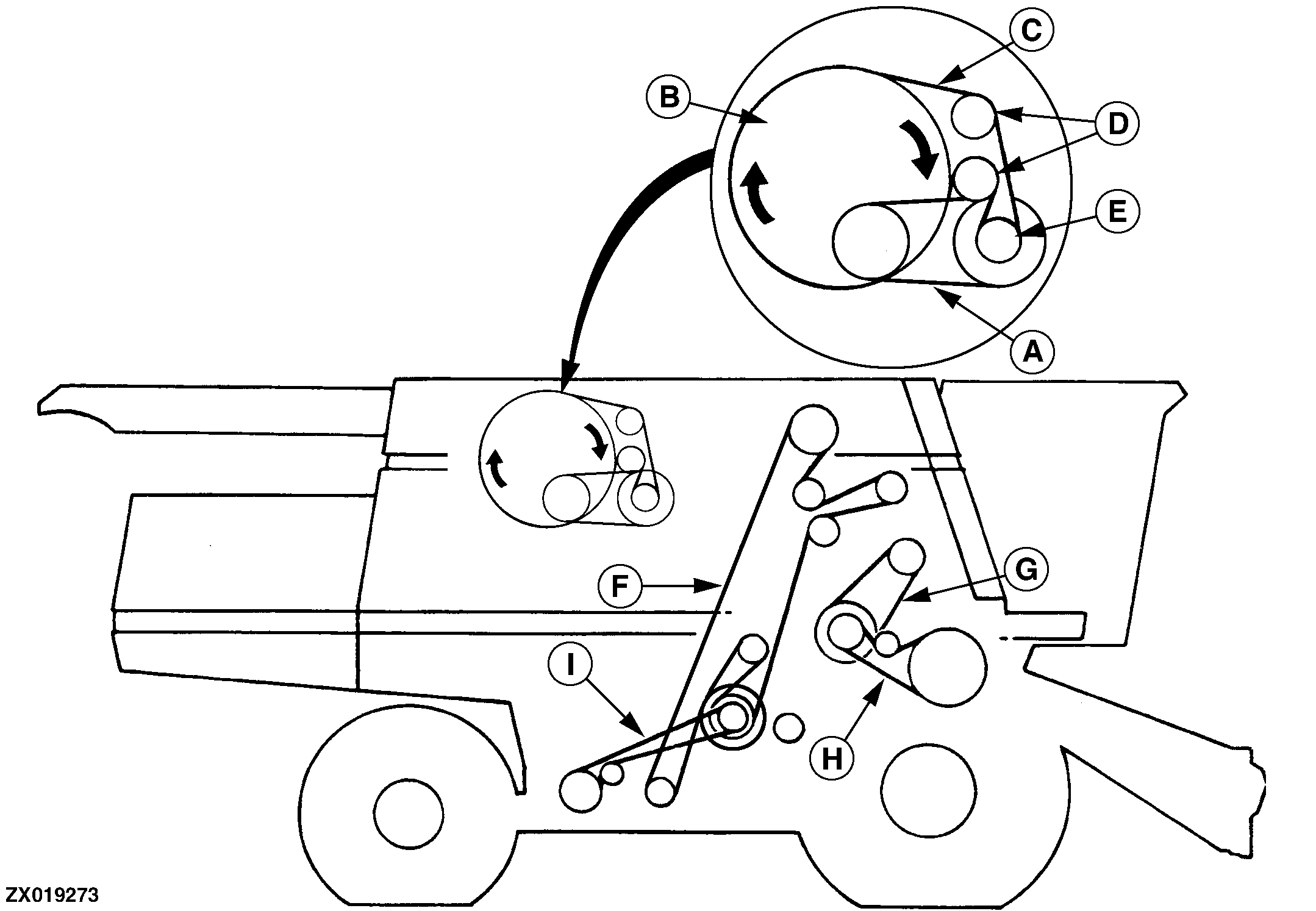

A-Rotary Screen Main Drive
B-Rotary Screen
C-Rotary Screen Belt
|
D-Idlers
E-Drive Sheave
F-Clean Grain Elevator Drive
|
G-Cylinder Intermediate Drive
H-Cylinder Drive
|
I-Lower Tailings Auger and Elevator Drive
|
