Replacing Variable Speed Feeder House Belt

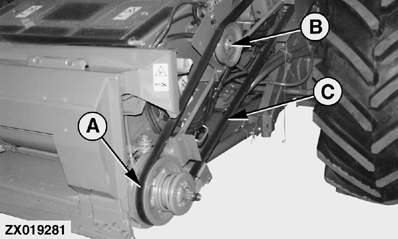

Run feeder house to close sheaves (A).

CAUTION: Lower variable sheave is under spring tension; if belt is removed, it will snap back to a closed position.

Shut off engine and remove key.

Remove both shields.

Loosen idler (B) and remove belt (C).

Install new belt and adjust tension (see "Adjusting Variable Speed Feeder House Belt" in this Section).
